Lexus RX (RX 350L, RX450h) 2016-2024 Repair Manual: Installation
INSTALLATION
PROCEDURE
1. INSTALL SKID CONTROL BUZZER ASSEMBLY
| (a) Connect the connector. HINT: Make sure to install the skid control buzzer assembly in the correct direction. |
|
.png)

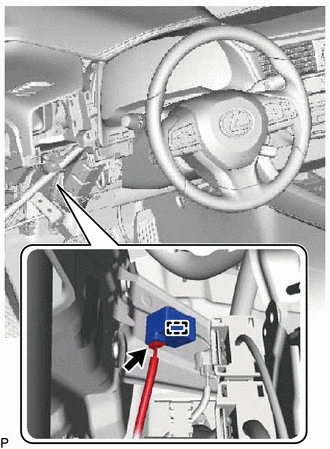

(b) Engage the clamp to install the skid control buzzer assembly.
NOTICE:
If the skid control buzzer assembly has been struck or dropped, replace it with a new one.
2. INSTALL INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY WITH MAIN BODY ECU
Click here .gif)
Inspection
INSPECTION PROCEDURE 1. INSPECT SKID CONTROL BUZZER ASSEMBLY (a) Make sure that there is no looseness in the locking part and connecting part of the connector. (b) Disconnect the skid c ...
