Lexus RX (RX 350L, RX450h) 2016-2025 Repair Manual: Components
COMPONENTS
ILLUSTRATION
| *1 | DECK BOARD ASSEMBLY | *2 | NO. 1 DECK BOARD |
| *3 | REAR NO. 4 FLOOR BOARD | *4 | TONNEAU COVER ASSEMBLY |
ILLUSTRATION
| *A | w/o Woofer | *B | w/ Woofer |
| *1 | DECK SIDE TRIM BOX LH | *2 | FRONT DECK FLOOR BOX |
| *3 | REAR DECK FLOOR BOX | *4 | REAR FLOOR FINISH PLATE |
| *5 | REAR NO. 2 SEAT ASSEMBLY | - | - |
ILLUSTRATION
| *A | w/ Woofer | - | - |
| *1 | NO. 2 DECK FLOOR BRACKET LH | *2 | REAR NO. 2 SEAT ASSEMBLY |
| *3 | REAR NO. 3 SPEAKER ASSEMBLY | - | - |
.png) | Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | - | - |
ILLUSTRATION
| *1 | NO. 3 SEAT NO. 2 LEG COVER | *2 | REAR NO. 2 SEAT ASSEMBLY LH |
| *3 | REAR NO. 2 SEAT INNER BELT ASSEMBLY LH | *4 | REAR NO. 2 SEAT WIRE LH |
| *5 | REAR SEAT HEADREST ASSEMBLY | *6 | REAR SEAT INNER BELT COVER LH |
| *7 | SEAT ADJUSTER COVER CAP | - | - |
| | Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | - | - |
ILLUSTRATION
| *1 | NO. 2 REAR SEAT RECLINING COVER LH | *2 | NO. 2 SEAT CUSHION COVER SUB-ASSEMBLY LH |
| *3 | NO. 2 SEATBACK BOARD SUB-ASSEMBLY LH | *4 | OUTER REAR SEAT CUSHION EDGE PROTECTOR LH |
| *5 | REAR NO. 2 SEAT OUTER RECLINING COVER LH | *6 | REAR NO. 2 SEAT RECLINING COVER LH |
| *7 | REAR SEAT CUSHION CARPET | *8 | ROPE HOOK ASSEMBLY |
| *9 | SEAT COVER WIRE | *10 | SEPARATE TYPE REAR SEAT CUSHION COVER WITH PAD LH |
| *11 | NO. 2 SEAT CUSHION PAD LH | *12 | HOG RING |
.png) | N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
ILLUSTRATION
| *1 | FOLD SEAT CONTROL ECU | *2 | NO. 2 SEATBACK COVER SUB-ASSEMBLY LH |
| *3 | NO. 3 REAR SEAT PROTECTOR LH | *4 | REAR NO. 2 SEAT RECLINING ADJUSTER INSIDE COVER |
| *5 | REAR NO. 2 SEAT WIRE LH | *6 | REAR SEATBACK PROTECTOR |
| *7 | RECLINING ADJUSTER INSIDE COVER RH | *8 | SEAT COVER WIRE |
| *9 | SEATBACK FELT LH | *10 | SEPARATE TYPE REAR SEATBACK COVER WITH PAD LH |
| *11 | REAR NO. 2 SEAT HEADREST SUPPORT ASSEMBLY | *12 | NO. 2 SEATBACK PAD LH |
| *13 | HOG RING | - | - |
| | N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
ILLUSTRATION
| *1 | NO. 2 SEATBACK FRAME SUB-ASSEMBLY LH | *2 | NO. 2 SEAT CUSHION FRAME SUB-ASSEMBLY LH |
| | Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | - | - |
ILLUSTRATION
| *1 | NO. 3 SEAT NO. 1 LEG COVER | *2 | REAR NO. 2 SEAT ASSEMBLY RH |
| *3 | REAR NO. 2 SEAT INNER BELT ASSEMBLY RH | *4 | REAR NO. 2 SEAT WIRE LH |
| *5 | REAR SEAT HEADREST ASSEMBLY | *6 | REAR SEAT INNER BELT COVER RH |
| | Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | - | - |

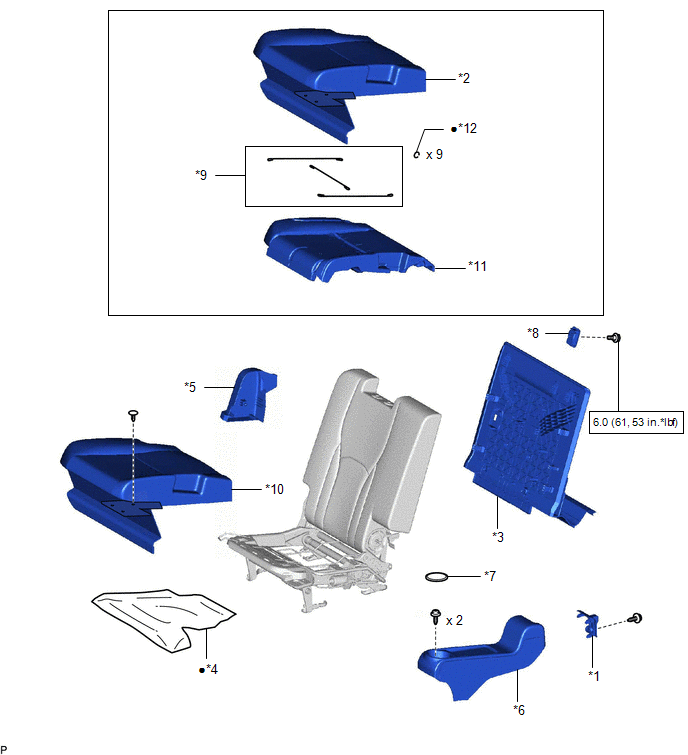

ILLUSTRATION
| *1 | NO. 2 REAR SEAT RECLINING COVER RH | *2 | NO. 2 SEAT CUSHION COVER SUB-ASSEMBLY RH |
| *3 | NO. 2 SEATBACK BOARD SUB-ASSEMBLY RH | *4 | OUTER REAR SEAT CUSHION EDGE PROTECTOR RH |
| *5 | REAR NO. 2 SEAT OUTER RECLINING COVER RH | *6 | REAR NO. 2 SEAT RECLINING COVER RH |
| *7 | REAR SEAT CUSHION CARPET | *8 | ROPE HOOK ASSEMBLY |
| *9 | SEAT COVER WIRE | *10 | SEPARATE TYPE REAR SEAT CUSHION COVER WITH PAD RH |
| *11 | NO. 2 SEAT CUSHION PAD RH | *12 | HOG RING |
| | N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
ILLUSTRATION
| *1 | FOLD SEAT CONTROL ECU | *2 | NO. 2 SEATBACK COVER SUB-ASSEMBLY RH |
| *3 | NO. 3 REAR SEAT PROTECTOR RH | *4 | REAR NO. 2 SEAT RECLINING ADJUSTER INSIDE COVER |
| *5 | REAR NO. 2 SEAT WIRE RH | *6 | REAR SEATBACK PROTECTOR |
| *7 | RECLINING ADJUSTER INSIDE COVER RH | *8 | SEAT COVER WIRE |
| *9 | SEPARATE TYPE REAR SEATBACK COVER WITH PAD RH | *10 | REAR NO. 2 SEAT HEADREST SUPPORT ASSEMBLY |
| *11 | NO. 2 SEATBACK PAD RH | *12 | HOG RING |
| | N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
ILLUSTRATION
| *1 | NO. 2 SEATBACK FRAME SUB-ASSEMBLY RH | *2 | NO. 2 SEAT CUSHION FRAME SUB-ASSEMBLY RH |
| | Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | - | - |
