Lexus RX (RX 350L, RX450h) 2016-2024 Repair Manual: Components

*1

DECK BOARD ASSEMBLY

*2

TONNEAU COVER ASSEMBLY

*A

for Manual Seat

-

-

*1

REAR SEAT ASSEMBLY RH

*2

REAR SEAT CENTER HEADREST ASSEMBLY

*3

REAR SEAT HEADREST ASSEMBLY

*4

REAR SEAT INNER TRACK BRACKET COVER RH

*5

REAR SEAT OUTER TRACK BRACKET COVER RH

*6

REAR SEAT RECLINING CONTROL CABLE

*7

JOINT CASE COVER

*8

JOINT PIECE

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

*A

for TMK Made

*B

for Manual Seat

*C

for Power Seat

*D

w/ Seat Heater System

*1

NO. 1 RECLINING ADJUSTER RELEASE HANDLE RH

*2

POWER SEAT SWITCH ASSEMBLY

*3

REAR POWER SEAT SWITCH RH

*4

REAR SEAT 3 POINT TYPE BELT ASSEMBLY RH

*5

REAR SEAT COVER CAP RH

*6

SEAT CUSHION FELT RH

*7

SEAT HEATER CONTROL SUB-ASSEMBLY

*8

SEPARATE TYPE REAR SEAT CUSHION COVER WITH PAD

*9

RECLINING REMOTE CONTROL BEZEL RH

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf)

●

Non-reusable part

*A

w/ Seat Heater System

-

-

*1

SEAT COVER WIRE

*2

SEAT HEATER ASSEMBLY

*3

SEPARATE TYPE REAR SEAT CUSHION COVER

*4

SEPARATE TYPE REAR SEAT CUSHION PAD

*5

HOG RING

*6

TAG PIN

●

Non-reusable part

-

-

*1

ARMREST ASSEMBLY

*2

CENTER ARMREST HINGE COVER LH

*3

NO. 1 SEAT ARMREST ASSEMBLY

*4

REAR SEATBACK BOARD SUB-ASSEMBLY

*5

REAR SEATBACK COVER

*6

REAR SEATBACK CENTER HINGE SUB-ASSEMBLY

*7

REAR SEAT RECLINING SPACER

*8

REAR SEAT CENTER ARMREST PLATE

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

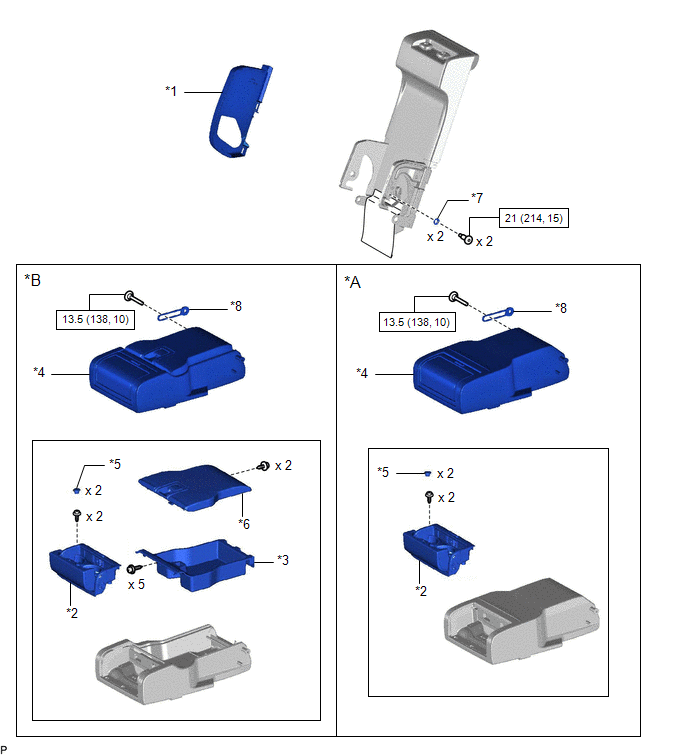

*A

w/o Console Box Lid

*B

w/ Console Box Lid

*1

CENTER ARMREST HINGE COVER RH

*2

CUP HOLDER ASSEMBLY

*3

NO. 2 REAR SEAT CENTER ARMREST BOX

*4

REAR SEAT CENTER ARMREST ASSEMBLY

*5

REAR SEAT CENTER ARMREST COVER

*6

REAR SEAT CENTER ARMREST DOOR SUB-ASSEMBLY

*7

NO. 2 REAR SEAT RECLINING SPACER

*8

REAR SEATBACK HINGE

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

*1

NO. 1 SEATBACK COVER

*2

NO. 2 CENTER SEATBACK COVER

*3

REAR SEAT CENTER ARMREST COVER SUB-ASSEMBLY

*4

REAR SEATBACK LOCK ASSEMBLY RH

*5

REAR SEATBACK LOCK LEVER

*6

REAR SEAT HEADREST SUPPORT

*7

FOLD SEATBACK WIRE

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

*A

for TMK Made

*B

for Manual Seat

*C

for Power Seat

*D

w/ Seat Heater System

*1

REAR CENTER SEAT OUTER BELT ASSEMBLY

*2

REAR SEAT SHOULDER BELT COVER

*3

REAR SEATBACK BOARD CARPET ASSEMBLY RH

*4

REAR SEATBACK COVER RH

*5

SEAT BELT ANCHOR COVER CAP

*6

SEAT COVER WIRE

*7

SEAT HEATER ASSEMBLY

*8

SEATBACK FELT RH

*9

SEPARATE TYPE REAR SEATBACK COVER

*10

SEPARATE TYPE REAR SEATBACK COVER WITH PAD

*11

SEPARATE TYPE REAR SEATBACK PAD

*12

REAR NO. 1 SEAT HEADREST SUPPORT

*13

HOG RING

*14

TAG PIN

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf)

N*m (kgf*cm, ft.*lbf): Specified torque

●

Non-reusable part

-

-

*A

for Manual Seat

*B

for Power Seat

*C

w/o Seat Heater System

*D

w/ Seat Heater System

*1

CONNECTOR BRACKET

*2

CONNECTOR MALE HOUSING

*3

FOLD SEAT CONTROL ECU

*4

NO. 1 RECLINING LINK COVER LH

*5

NO. 1 RECLINING LINK COVER RH

*6

NO. 2 RECLINING LINK COVER LH

*7

NO. 2 RECLINING LINK COVER RH

*8

REAR SEAT AIRBAG ASSEMBLY RH

*9

REAR SEAT INNER RECLINING COVER RH

*10

REAR SEAT LEG PLATE SUB-ASSEMBLY RH

*11

REAR SEAT RECLINING CONTROL CABLE

*12

REAR SEAT WIRE RH

*13

REAR SEATBACK MOULDING RH

*14

REAR SEATBACK PROTECTOR

*15

RECLINING ADJUSTER INSIDE COVER LH

*16

RECLINING ADJUSTER INSIDE COVER LH

*17

RECLINING ADJUSTER INSIDE COVER LH

*18

RECLINING ADJUSTER INSIDE COVER RH

*19

UPPER NO. 1 REAR SEATBACK MOULDING

*20

UPPER NO. 2 REAR SEATBACK MOULDING

*21

JOINT CASE

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

N*m (kgf*cm, ft.*lbf): Specified torque

●

Non-reusable part

-

-

*A

for Manual Seat

*B

for Power Seat

*1

REAR SEATBACK FRAME SUB-ASSEMBLY RH

*2

REAR SEAT CUSHION FRAME SUB-ASSEMBLY RH

N*m (kgf*cm, ft.*lbf): Specified torque

-

-
