Lexus RX (RX 350L, RX450h) 2016-2024 Repair Manual: Inspection

INSPECTION

PROCEDURE

1. INSPECT REFRESHING SEAT SWITCH (for Front Side)

(a) Apply battery voltage and check the operation of the switch according to the table below.

OK:

Battery Connection

Condition

Specified Condition

Battery positive (+) → Terminal 3

Battery negative (-) → Terminal 5

Always

Illumination comes on

If the result is not as specified, replace the refreshing seat switch (for front side).

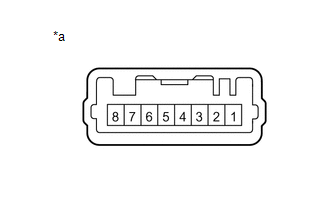

*a

Component without harness connected

(Refreshing Seat Switch (for Front Side))

    Removal
    REMOVAL PROCEDURE 1. REMOVE REAR CONSOLE UPPER PANEL Click here 2. REMOVE LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL Click here 3. REMOVE LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL Click here 4. R ...

    Installation
    INSTALLATION PROCEDURE 1. INSTALL REFRESHING SEAT SWITCH (a) Engage the 4 claws to install the refreshing seat switch to the console panel sub-assembly. 2. INSTALL CONSOLE PANEL SUB-ASS ...
