Lexus RX (RX 350L, RX450h) 2016-2025 Repair Manual: Parts Location
PARTS LOCATION
ILLUSTRATION
| *A | w/o Rear No. 2 Seat | - | - |
| *1 | FRONT AIRBAG SENSOR LH | *2 | FRONT AIRBAG SENSOR RH |
| *3 | DOOR SIDE AIRBAG SENSOR LH | *4 | DOOR SIDE AIRBAG SENSOR RH |
| *5 | REAR AIRBAG SENSOR LH | *6 | REAR AIRBAG SENSOR RH |
| *7 | CURTAIN SHIELD AIRBAG ASSEMBLY LH | *8 | CURTAIN SHIELD AIRBAG ASSEMBLY RH |
| *9 | FRONT SEAT OUTER BELT ASSEMBLY LH | *10 | FRONT SEAT OUTER BELT ASSEMBLY RH |
| *11 | REAR NO. 1 SEAT OUTER BELT ASSEMBLY LH | *12 | REAR NO. 1 SEAT OUTER BELT ASSEMBLY RH |
| *13 | ENGINE ROOM RELAY BLOCK AND JUNCTION BLOCK ASSEMBLY - ECU-IG1 NO. 8 FUSE | - | - |
ILLUSTRATION
| *A | w/ Rear No. 2 Seat | - | - |
| *1 | FRONT AIRBAG SENSOR LH | *2 | FRONT AIRBAG SENSOR RH |
| *3 | DOOR SIDE AIRBAG SENSOR LH | *4 | DOOR SIDE AIRBAG SENSOR RH |
| *5 | REAR AIRBAG SENSOR LH | *6 | REAR AIRBAG SENSOR RH |
| *7 | CURTAIN SHIELD AIRBAG ASSEMBLY LH | *8 | CURTAIN SHIELD AIRBAG ASSEMBLY RH |
| *9 | FRONT SEAT OUTER BELT ASSEMBLY LH | *10 | FRONT SEAT OUTER BELT ASSEMBLY RH |
| *11 | REAR NO. 1 SEAT OUTER BELT ASSEMBLY LH | *12 | REAR NO. 1 SEAT OUTER BELT ASSEMBLY RH |
| *13 | ENGINE ROOM RELAY BLOCK AND JUNCTION BLOCK ASSEMBLY - ECU-IG1 NO. 8 FUSE | - | - |

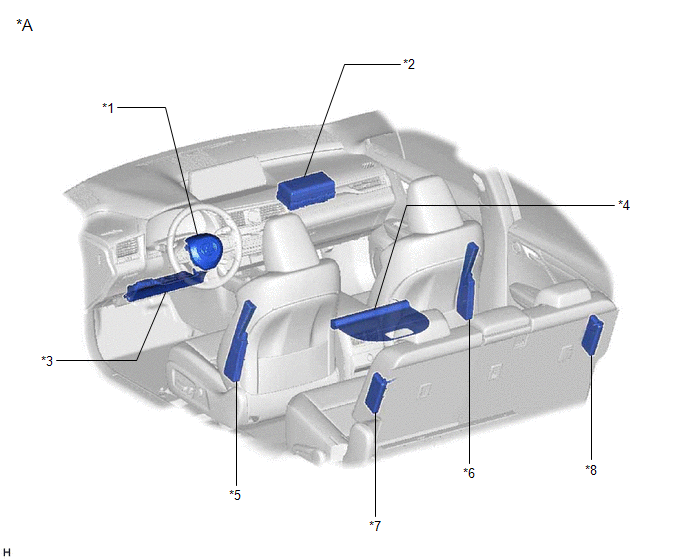

ILLUSTRATION
| *A | w/o Rear No. 2 Seat | - | - |
| *1 | HORN BUTTON ASSEMBLY | *2 | INSTRUMENT PANEL PASSENGER AIRBAG ASSEMBLY |
| *3 | LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY | *4 | FRONT SEAT CUSHION AIRBAG ASSEMBLY RH |
| *5 | FRONT SEAT AIRBAG ASSEMBLY LH | *6 | FRONT SEAT AIRBAG ASSEMBLY RH |
| *7 | REAR SEAT AIRBAG ASSEMBLY LH | *8 | REAR SEAT AIRBAG ASSEMBLY RH |
ILLUSTRATION
| *A | w/ Rear No. 2 Seat | - | - |
| *1 | HORN BUTTON ASSEMBLY | *2 | INSTRUMENT PANEL PASSENGER AIRBAG ASSEMBLY |
| *3 | LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY | *4 | FRONT SEAT CUSHION AIRBAG ASSEMBLY RH |
| *5 | FRONT SEAT AIRBAG ASSEMBLY LH | *6 | FRONT SEAT AIRBAG ASSEMBLY RH |
| *7 | REAR SEAT AIRBAG ASSEMBLY LH | *8 | REAR SEAT AIRBAG ASSEMBLY RH |
ILLUSTRATION
| *1 | AIRBAG SENSOR ASSEMBLY | *2 | OCCUPANT DETECTION ECU |
| *3 | SEAT POSITION AIRBAG SENSOR | *4 | FRONT SEAT INNER BELT ASSEMBLY LH - FRONT SEAT BELT BUCKLE SWITCH LH |
| *5 | SPIRAL CABLE SUB-ASSEMBLY | *6 | COMBINATION METER ASSEMBLY - SRS WARNING LIGHT |
| *7 | RADIO RECEIVER ASSEMBLY - PASSENGER AIRBAG ON/OFF INDICATOR | *8 | DLC3 |
| *9 | DCM (TELEMATICS TRANSCEIVER) (w/ DCM (Telematics Transceiver)) | *10 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *11 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - A/BAG-IG2 FUSE - METER FUSE - METER-IG2 FUSE | - | - |
Precaution
PRECAUTION CAUTION:
Failure to carry out service procedures in the correct sequence could cause SRS parts to unexpectedly deploy and possibly lead to serious injuries. Furthermore, if a mistake is ...
System Diagram
SYSTEM DIAGRAM Communication Table Transmitting ECU (Transmitter) Receiving ECU Signal Communication Method Airbag Sensor Assembly Occupant Detection ECU
Crash detection signal ...
