Lexus RX (RX 350L, RX450h) 2016-2025 Repair Manual: Installation
INSTALLATION
PROCEDURE
1. INSTALL REAR SEAT AIRBAG ASSEMBLY
(a) Install the rear seat airbag assembly with 2 new nuts.
Torque:
5.5 N·m {56 kgf·cm, 49 in·lbf}
NOTICE:
- Do not reuse the nuts.
- Make sure that the rear seatback frame sub-assembly is not deformed. If it is deformed, replace it with a new one.
(b) Engage the 6 clamps.
(c) Connect the rear seat airbag assembly connector.

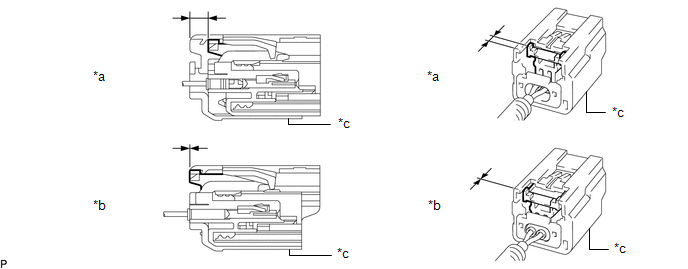

(1) Before connecting the connector, check that the position of the white housing lock is correct as shown in the illustration.
.png)
| *a | Correct | *b | Incorrect |
| *c | Yellow CPA | - | - |
(2) Be sure to engage the connectors until they are locked (when locking, make sure that a click sound can be heard).
NOTICE:
- When connecting any airbag connector, take care not to damage the airbag wire harness.
- When engaged, the white housing lock will slide. Be sure not to hold the white housing lock and upper part of the yellow CPA, as it may result in an insecure fit.
2. INSTALL RECLINING REMOTE CONTROL BEZEL
Click here .gif)
3. INSTALL SEPARATE TYPE REAR SEATBACK COVER WITH PAD (for LH Side)
Click here
4. INSTALL SEPARATE TYPE REAR SEATBACK COVER WITH PAD (for RH Side)
Click here
5. INSTALL RECLINING REMOTE CONTROL LEVER SUB-ASSEMBLY
Click here
6. INSTALL REAR SEAT UPPER RECLINING COVER
Click here
7. INSTALL REAR SEAT SHOULDER BELT COVER (for RH Side)
Click here
8. INSTALL SEAT BELT ANCHOR COVER CAP (for RH Side)
Click here
9. INSTALL REAR SEATBACK BOARD CARPET ASSEMBLY
Click here
10. INSTALL REAR SEATBACK COVER
Click here
11. CONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY (for RH Side)
Click here
12. INSTALL SEPARATE TYPE REAR SEAT CUSHION COVER WITH PAD (for LH Side)
Click here
13. INSTALL SEPARATE TYPE REAR SEAT CUSHION COVER WITH PAD (for RH Side)
Click here
14. INSTALL REAR SEAT LOCK CONTROL LEVER SUB-ASSEMBLY (for LH Side)
Click here
15. INSTALL REAR SEAT LOCK CONTROL LEVER SUB-ASSEMBLY (for RH Side)
Click here
16. INSTALL NO. 1 RECLINING ADJUSTER RELEASE HANDLE
Click here
17. INSTALL REAR SEAT COVER CAP
Click here
18. INSTALL REAR NO. 1 SEAT ASSEMBLY LH (for LH Side)
Click here
19. INSTALL REAR NO. 1 SEAT ASSEMBLY RH (for RH Side)
Click here
20. PERFORM DIAGNOSTIC SYSTEM CHECK
Click here
