REMOVAL
CAUTION / NOTICE / HINT
The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed, installed, or replaced during the seat position airbag sensor removal/installation are shown below.
Necessary Procedure After Parts Removed/Installed/Replaced| Replacement Part or Procedure | Necessary Procedures | Effects / Inoperative when not performed | Link |
|---|---|---|---|
| Disconnect cable from negative battery terminal | Memorize steering angle neutral point | Lane control system | |
| Pre-collision system | |||
| Intelligent clearance sonar system*1 | |||
| Lighting system (w/ Automatic Headlight Beam Level Control System) | | ||
| Parking assist monitor system | | ||
| Panoramic view monitor system | | ||
| Initialize back door lock | Power door lock control system | | |
| Reset back door close position | Power back door system | |
*1: When performing learning using the Techstream.
Click here .gif)
PROCEDURE
1. REMOVE FRONT SEAT ASSEMBLY LH
Click here
2. REMOVE SEAT POSITION AIRBAG SENSOR
(a) Disconnect the connector.

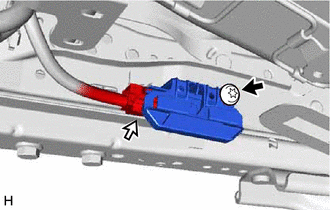

.png) | "TORX" Bolt |
.png) | Connector |
(b) Using a T30 "TORX" socket wrench, remove the "TORX" bolt and seat position airbag sensor with the seat slide position sensor protector.

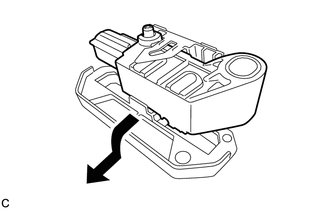

| (c) Remove the seat position airbag sensor from the seat slide position sensor protector as shown in the illustration. |
|
Installation
INSTALLATION PROCEDURE 1. INSTALL SEAT POSITION AIRBAG SENSOR (a) Engage the pin to install the seat position airbag sensor to the seat slide position sensor protector as shown in the illustration. ...
