Lexus RX (RX 350L, RX450h) 2016-2026 Repair Manual: Removal
REMOVAL
CAUTION / NOTICE / HINT
The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during theft warning siren assembly removal/installation are shown below.
Necessary Procedures after parts removed/installed/replaced| Replaced Part or Performed Procedure | Necessary Procedure | Effect/Inoperative Function when Necessary Procedure not Performed | Link |
|---|---|---|---|
|
*1: When performing learning using the Techstream.
Click here | |||
| Disconnect cable from negative battery terminal | Memorize steering angle neutral point | Lane Control System | |
| Pre-collision System | |||
| Intelligent Clearance Sonar System*1 | |||
| Lighting system (w/ Automatic Headlight Beam Level Control System) | | ||
| Parking assist monitor system | | ||
| Panoramic view monitor system | | ||
| Initialize back door lock | Power door lock control system | | |
| Reset back door close position | Power Back Door System (w/ Outside Door Control Switch) | | |
PROCEDURE
1. REMOVE TONNEAU COVER ASSEMBLY (w/o Rear No. 2 Seat)
Click here .gif)
2. REMOVE DECK BOARD ASSEMBLY (w/o Rear No. 2 Seat)
Click here
3. REMOVE REAR NO. 3 FLOOR BOARD (w/o Rear No. 2 Seat)
Click here
4. REMOVE REAR DECK FLOOR BOX (w/o Rear No. 2 Seat)
Click here
5. REMOVE REAR NO. 4 FLOOR BOARD (w/o Rear No. 2 Seat)
Click here
6. REMOVE DECK SIDE TRIM BOX RH (w/o Rear No. 2 Seat)
Click here
7. REMOVE REAR FLOOR FINISH PLATE (w/o Rear No. 2 Seat)
Click here
8. REMOVE REAR DOOR SCUFF PLATE RH (w/o Rear No. 2 Seat)
HINT:
Use the same procedure as for the LH side.
Click here
9. REMOVE REAR SEAT ASSEMBLY RH (w/o Rear No. 2 Seat)
Click here
10. REMOVE UPPER QUARTER TRIM PAD RH (w/o Rear No. 2 Seat)
HINT:
Use the same procedure as for the LH side.
Click here
11. REMOVE REAR SEAT SIDE GARNISH RH (w/o Rear No. 2 Seat)
HINT:
Use the same procedure as for the LH side.
Click here
12. REMOVE REAR FLOOR FINISH SIDE PLATE RH (w/o Rear No. 2 Seat)
HINT:
Use the same procedure as for the LH side.
Click here
13. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK (w/o Rear No. 2 Seat)
Click here
14. REMOVE ROPE HOOK ASSEMBLY (w/o Rear No. 2 Seat)
HINT:
Use the same procedure as for the LH side.
Click here
15. REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY (w/o Rear No. 2 Seat)
Click here
16. REMOVE RECLINING REMOTE CONTROL BEZEL RH (w/o Rear No. 2 Seat)
w/o Rear Power Seat System:
Click here
17. REMOVE FOLD SEAT SWITCH ASSEMBLY (w/o Rear No. 2 Seat)
w/ Rear Power Seat System:
Click here
18. REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH (w/o Rear No. 2 Seat)
Click here
19. REMOVE REAR NO. 2 SEAT ASSEMBLY (w/ Rear No. 2 Seat)
Click here
20. REMOVE REAR DOOR SCUFF PLATE RH (w/ Rear No. 2 Seat)
HINT:
Use the same procedure as for the LH side.
Click here
21. REMOVE REAR DOOR INSIDE SCUFF PLATE RH (w/ Rear No. 2 Seat)
HINT:
Use the same procedure as for the LH side.
Click here
22. REMOVE REAR SEAT OUTER TRACK BRACKET COVER RH (w/ Rear No. 2 Seat)
for 60/40 Split Seat Type:
Click here
for Captain Seat Type:
HINT:
Use the same procedure as for the LH side.
Click here
23. REMOVE FRONT DECK SIDE TRIM COVER RH (w/ Rear No. 2 Seat)
HINT:
Use the same procedure as for the LH side.
Click here
24. REMOVE REAR SEAT SIDE GARNISH RH (w/ Rear No. 2 Seat)
Click here
25. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK (w/ Rear No. 2 Seat)
Click here
26. REMOVE ROPE HOOK ASSEMBLY (w/ Rear No. 2 Seat)
HINT:
Use the same procedure as for the LH side.
Click here
27. REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY (w/ Rear No. 2 Seat)
Click here
28. REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH (w/ Rear No. 2 Seat)
Click here

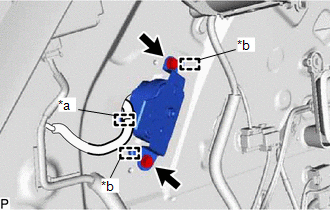

29. REMOVE THEFT WARNING SIREN ASSEMBLY
| (a) Disengage the clamp. |
|
(b) Remove the 2 bolts.
(c) Disengage the 2 guides.
(d) Disconnect the connector to remove the theft warning siren assembly.
Components
COMPONENTS ILLUSTRATION *A w/o Rear No. 2 Seat - - *1 DECK BOARD ASSEMBLY *2 DECK SIDE TRIM BOX RH *3 REAR DECK FLOOR BOX *4 REAR FLOOR FINISH PLATE *5 REAR NO. 3 F ...
Installation
INSTALLATION PROCEDURE 1. INSTALL THEFT WARNING SIREN ASSEMBLY (a) Connect the connector. (b) Engage the 2 guides to install the theft warning siren assembly with the 2 bolts. (c) Engage the clamp. 2. ...
