Lexus RX (RX 350L, RX450h) 2016-2023 Repair Manual: Components
COMPONENTS
ILLUSTRATION
.png)
| *A | w/o Manual (SOS) Switch | *B | w/ Manual (SOS) Switch |
| *1 | ANTENNA CORD SUB-ASSEMBLY | *2 | NO. 2 SIDE DEFROSTER NOZZLE DUCT |
| *3 | NO. 4 HEATER TO REGISTER DUCT | - | - |
ILLUSTRATION
| *A | for Standard Roof | - | - |
| *1 | NO. 2 ANTENNA CORD SUB-ASSEMBLY | *2 | ROOF HEADLINING ASSEMBLY |
ILLUSTRATION
| *A | for Sliding Roof | - | - |
| *1 | NO. 2 ANTENNA CORD SUB-ASSEMBLY | *2 | ROOF HEADLINING ASSEMBLY |

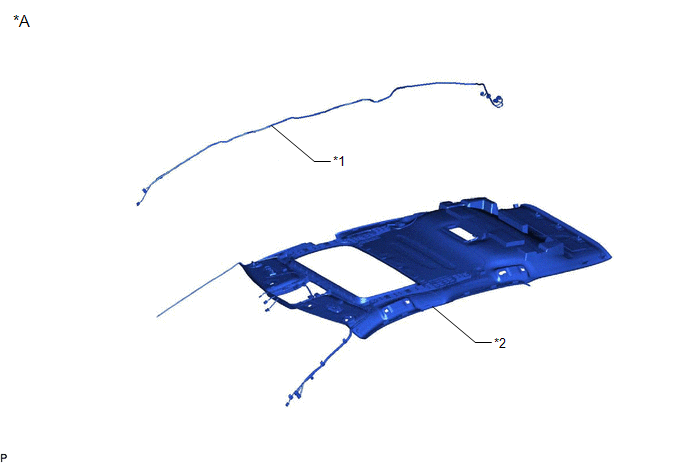

ILLUSTRATION
| *A | for Panoramic Moon Roof | - | - |
| *1 | NO. 2 ANTENNA CORD SUB-ASSEMBLY | *2 | ROOF HEADLINING ASSEMBLY |
ILLUSTRATION
| *1 | BACK DOOR LOCK COVER | *2 | BACK DOOR TRIM BASE |
| *3 | BACK DOOR TRIM COVER LH | *4 | BACK DOOR TRIM COVER RH |
| *5 | BACK DOOR TRIM PANEL ASSEMBLY | *6 | BACK WINDOW UPPER PANEL TRIM |
| *7 | DOOR PULL HANDLE | *8 | NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY |
| *9 | NO. 3 ANTENNA CORD SUB-ASSEMBLY | *10 | NO. 4 ANTENNA CORD SUB-ASSEMBLY |
Removal
REMOVAL CAUTION / NOTICE / HINT The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during ant ...
