Lexus RX (RX 350L, RX450h) 2016-2023 Repair Manual: Components
COMPONENTS

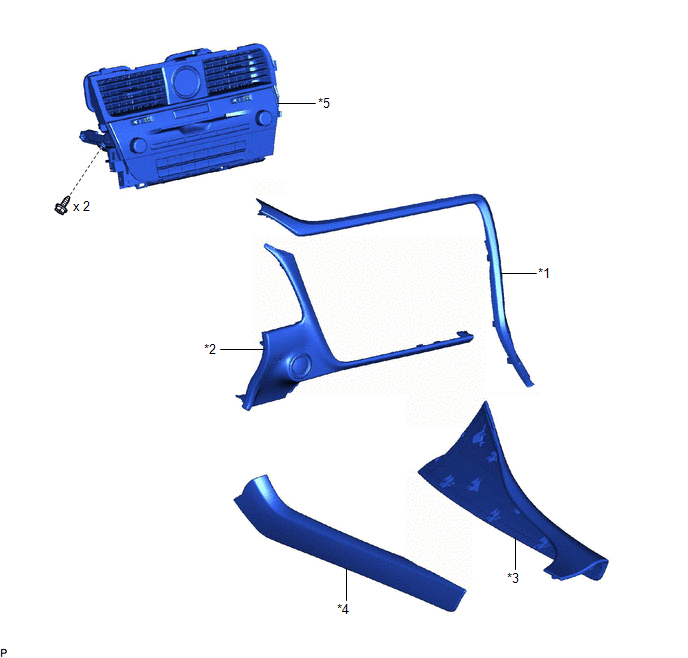

ILLUSTRATION
| *1 | INSTRUMENT CLUSTER FINISH PANEL ORNAMENT | *2 | LOWER INSTRUMENT FINISH PANEL SUB |
| *3 | LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL | *4 | LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL |
| *5 | RADIO RECEIVER ASSEMBLY WITH REGISTER | - | - |
ILLUSTRATION
| *A | w/o Navigation ECU | *B | w/ Navigation ECU |
| *1 | CLOCK ASSEMBLY | *2 | NAVIGATION ECU |
| *3 | NO. 1 NAVIGATION WIRE | *4 | NO. 1 RADIO BRACKET |
| *5 | NO. 2 RADIO BRACKET | *6 | NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY |
| *7 | NO. 4 INSTRUMENT PANEL REGISTER ASSEMBLY | *8 | RADIO RECEIVER ASSEMBLY |
Radio Receiver
...
Installation
INSTALLATION PROCEDURE 1. INSTALL RADIO RECEIVER ASSEMBLY 2. INSTALL NAVIGATION ECU (w/ Navigation ECU) 3. INSTALL NO. 2 RADIO BRACKET (a) w/o Navigation ECU: (1) Install the No. 2 radio bracket with ...
