Lexus RX (RX 350L, RX450h) 2016-2023 Repair Manual: Disassembly
DISASSEMBLY
CAUTION / NOTICE / HINT
HINT:
Perform the removal and installation of the front disc brake piston, cylinder boot and piston seal one side at a time.
PROCEDURE
1. REMOVE FRONT DISC BRAKE PISTON

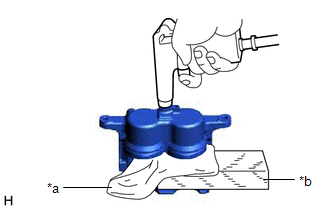

| (a) Place a piece of cloth and a wooden block between the front disc brake piston and front disc brake cylinder. HINT: Make sure to place the wooden block between the front disc brake piston which is not to be removed and the front disc brake cylinder. |
|
(b) Apply compressed air to remove the front disc brake piston from the front disc brake cylinder.
CAUTION:
- Do not hold the front disc brake cylinder with any part of your hand between the front disc brake cylinder and front disc brake piston.
- Do not place any part of your hand in front of the front disc brake piston when using compressed air as a severe injury may result.
NOTICE:
Do not allow any brake fluid to spatter.
2. REMOVE CYLINDER BOOT
| (a) Using a screwdriver with its tip wrapped with protective tape, remove the cylinder boot from the front disc brake cylinder. NOTICE: Be careful not to damage the front disc brake cylinder. |
|
3. REMOVE PISTON SEAL
| (a) Using a screwdriver with its tip wrapped with protective tape, remove the piston seal from the front disc brake cylinder. NOTICE: Do not damage the inner surface or piston seal groove of the front disc brake cylinder. |
|
4. REMOVE FRONT DISC BRAKE BLEEDER PLUG CAP
5. REMOVE FRONT DISC BRAKE BLEEDER PLUG
Removal
REMOVAL CAUTION / NOTICE / HINT HINT:
Use the same procedure for the RH side and LH side.
The following procedure is for the LH side.
PROCEDURE 1. REMOVE FRONT WHEEL Click here 2. DRAIN BRAK ...
Inspection
INSPECTION PROCEDURE 1. INSPECT BRAKE CYLINDER AND PISTON (a) Check the front disc brake cylinder bore and front disc brake piston for rust and scoring. If necessary, replace the front disc brake cyli ...
