Lexus RX (RX 350L, RX450h) 2016-2024 Repair Manual: Components
COMPONENTS
ILLUSTRATION
| *1 | AIR CLEANER BRACKET | *2 | AIR CLEANER CASE SUB-ASSEMBLY |
| *3 | AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY | *4 | COOL AIR INTAKE DUCT SEAL |
| *5 | INLET AIR CLEANER ASSEMBLY | *6 | V-BANK COVER SUB-ASSEMBLY |
.png) | N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
ILLUSTRATION
| *1 | TRANSMISSION CONTROL CABLE ASSEMBLY | *2 | VACUUM HOSE SUB-ASSEMBLY |
| *3 | VENTILATION HOSE | *4 | INLET HEATER WATER HOSE |
| *5 | OUTLET HEATER WATER HOSE | - | - |
| | N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
ILLUSTRATION
| *A | for TMC Made | *B | for TMMC Made |
| *1 | NO. 2 ENGINE UNDER COVER | - | - |

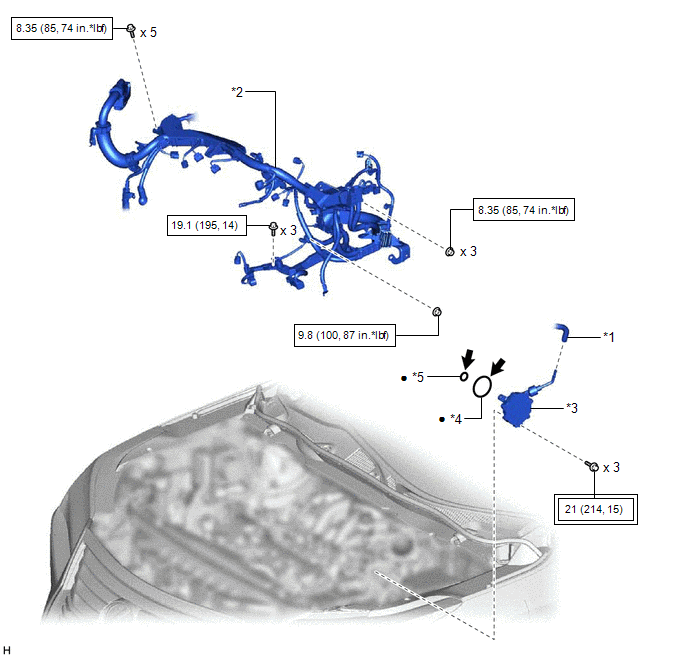

ILLUSTRATION
| *1 | AIR TUBE | *2 | ENGINE WIRE |
| *3 | VACUUM PUMP ASSEMBLY | *4 | NO. 2 O-RING |
| *5 | NO. 3 O-RING | - | - |
.png) | Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | | N*m (kgf*cm, ft.*lbf): Specified torque |
| ● | Non-reusable part | .png) | Engine oil |
ILLUSTRATION
| *A | for TMC Made | - | - |
| *1 | END COVER | *2 | VACUUM PUMP VANE |
| *3 | VACUUM PUMP HOUSING | *4 | VACUUM PUMP VANE CAP |
| *5 | NO. 1 O-RING | - | - |
| | N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
| | Engine Oil | - | - |
Vacuum Pump
...
On-vehicle Inspection
ON-VEHICLE INSPECTION PROCEDURE 1. REMOVE FRONT WIPER MOTOR AND LINK ASSEMBLY Click here 2. REMOVE OUTER COWL TOP PANEL SUB-ASSEMBLY Click here 3. OPERATION CHECK (a) Slide the clip and disconne ...
