Lexus RX (RX 350L, RX450h) 2016-2025 Repair Manual: Components
COMPONENTS

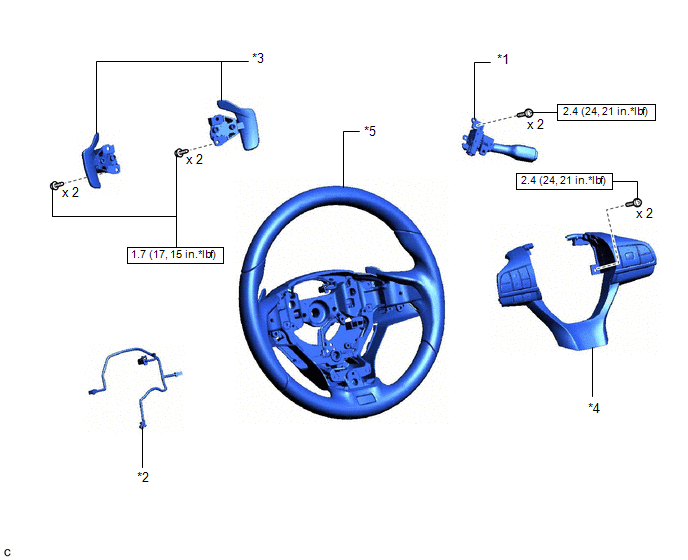

ILLUSTRATION
.png)
| *1 | CRUISE CONTROL MAIN SWITCH | *2 | NO. 1 SWITCH WIRE |
| *3 | SHIFT PADDLE SWITCH (TRANSMISSION SHIFT SWITCH ASSEMBLY) | *4 | STEERING PAD SWITCH ASSEMBLY |
| *5 | STEERING WHEEL ASSEMBLY | - | - |
.png) | N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
| ★ | Precoated part | - | - |
Removal
REMOVAL CAUTION / NOTICE / HINT The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during shif ...
