COMPONENTS

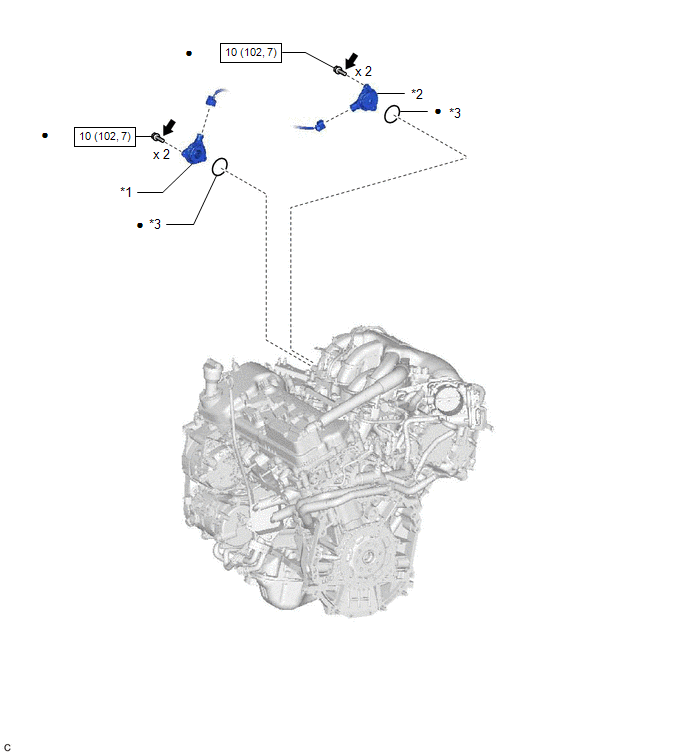

ILLUSTRATION
*1 | CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Intake Side of Bank 1) | *2 | CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Exhaust Side of Bank 1) |
*3 | O-RING | - | - |
![]() | N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
![]() | Adhesive 1324 | ★ | Precoated part |
