Lexus RX (RX 350L, RX450h) 2016-2022 Repair Manual: "No GPS signal" mark is displayed

CAUTION / NOTICE / HINT

NOTICE:

Depending on the parts that are replaced during vehicle inspection or maintenance, performing initialization, registration or calibration may be needed. Refer to Precaution for Audio and Visual System.

Click here

PROCEDURE

1.

CHECK CABIN

(a) Check the cabin for any object that might interrupt radio reception or additional devices which use radio waves on the instrument panel. If such an object exists, remove it and check if the "No GPS signal" mark disappears.

HINT:

The GPS uses extremely weak radio waves originating from satellites. If the signal is interrupted by obstructions or other radio waves, the GPS may not be able to properly receive the signal.

OK:

The "No GPS signal" mark disappears.

OK

END

NG

2.

CHECK SURROUNDINGS

(a) Check if the vehicle is in a location where GPS signal reception is poor. If the vehicle is in such a place, relocate the vehicle and check if the "No GPS signal" mark disappears.

HINT:

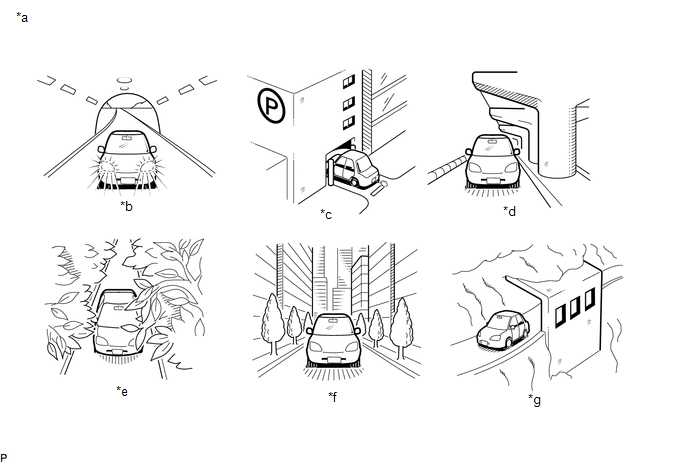

The GPS uses 24 satellites in 6 orbits. At any point in time, 4 satellites should be able to pinpoint your vehicle. However, GPS signals may not reach the vehicle due to influence from the surroundings, vehicle direction and time. For examples, see the following illustration.

*a

Example

*b

In a tunnel

*c

In a building

*d

Under an overpass

*e

On a forest or tree-lined path

*f

Between tall buildings

*g

Under a cliff or overhang

-

-

OK:

The "No GPS signal" mark disappears.

OK

SYSTEM RETURNS TO NORMAL

NG

3.

CHECK GPS INFORMATION (OPERATION CHECK)

(a) Enter the "System Sensors Check" screen. Refer to Check GPS & Vehicle Sensors in Operation Check.

Click here

*a

Example

(b) Check how many of the following codes appear in the "Reception number" column.

HINT:

T or P appears.

OK:

At least 3 codes appear.

OK

REPLACE RADIO RECEIVER ASSEMBLY

NG

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE
