Lexus RX (RX 350L, RX450h) 2016-2026 Repair Manual: Components
COMPONENTS

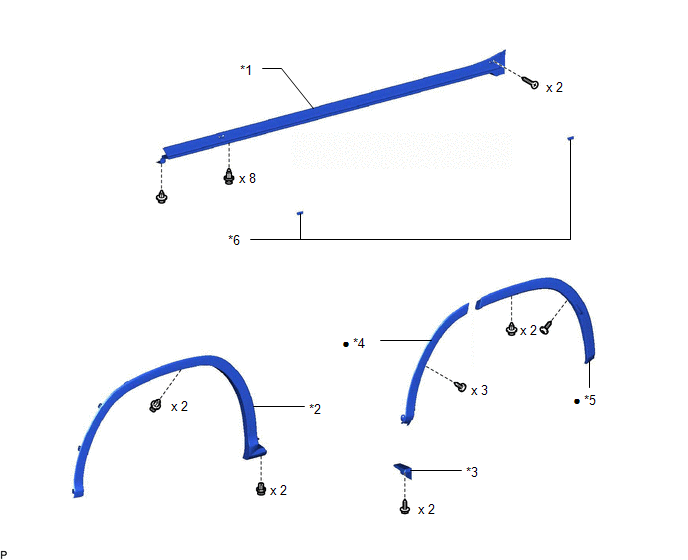

ILLUSTRATION
| *1 | BODY ROCKER PANEL MOULDING ASSEMBLY | *2 | FRONT FENDER MOULDING SUB-ASSEMBLY |
| *3 | NO. 6 ROCKER PANEL MOULDING PROTECTOR | *4 | QUARTER OUTSIDE MOULDING SUB-ASSEMBLY |
| *5 | QUARTER PANEL WHEEL OPENING MOULDING | *6 | ROCKER PANEL MOULDING COVER |
| ● | Non-reusable part | - | - |
Removal
REMOVAL CAUTION / NOTICE / HINT HINT:
Use the same procedure for the RH side and LH side.
The following procedure is for the LH side.
PROCEDURE 1. REMOVE FRONT FENDER MOULDING SUB-ASSEMBLY Cli ...
