Lexus RX (RX 350L, RX450h) 2016-2025 Repair Manual: Disassembly
DISASSEMBLY
CAUTION / NOTICE / HINT
HINT:
- Use the same procedure for the RH side and LH side.
- The following procedure is for the LH side.
PROCEDURE
1. REMOVE REAR COMBINATION LIGHT CAP (for LED Type Turn Signal Light)
(a) for TMMC Made:

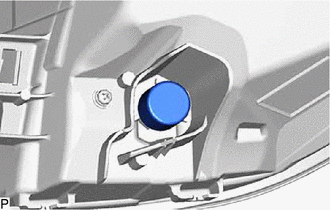

| (1) Remove the rear combination light cap. HINT: Use the same procedure for all rear combination light caps. |
|
2. REMOVE REAR TURN SIGNAL LIGHT BULB (for Bulb Type Turn Signal Light)

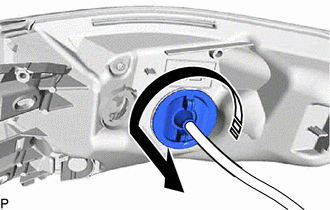

(a) Turn the rear light cord with the rear turn signal light bulb as shown in the illustration to disconnect them as a unit.
.png) | Remove in this Direction |
(b) Remove the rear turn signal light bulb from the rear light cord.
3. REMOVE REAR LIGHT CORD (for Bulb Type Turn Signal Light)

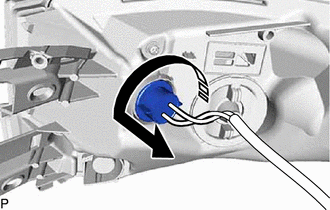

(a) Turn the rear light cord as shown in the illustration to disconnect them as a unit.
| | Remove in this Direction |

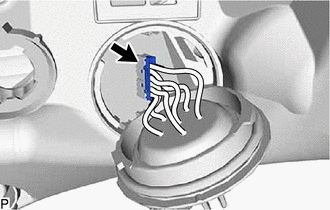

| (b) Disconnect the connector to remove the rear light cord. |
|
4. REMOVE REAR COMBINATION LIGHT BRACKET (for Bulb Type Turn Signal Light)

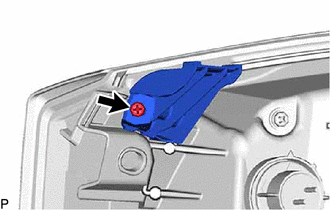

| (a) Remove the screw and rear combination light bracket. |
|
5. REMOVE REAR COMBINATION LIGHT LENS AND BODY (for Bulb Type Turn Signal Light)
Removal
REMOVAL CAUTION / NOTICE / HINT HINT:
Use the same procedure for the RH side and LH side.
The following procedure is for the LH side.
PROCEDURE 1. REMOVE REAR NO. 2 SEAT ASSEMBLY Click here ...
Inspection
INSPECTION PROCEDURE 1. INSPECT REAR COMBINATION LIGHT ASSEMBLY LH (a) Apply battery voltage to the rear combination light assembly LH and check that the lights come on. OK: Condition Specifi ...
