Lexus RX (RX 350L, RX450h) 2016-2023 Repair Manual: Operation Check

OPERATION CHECK

CHECK ELECTRICAL REMOTE CONTROL MIRROR FUNCTION

(a) Turn the engine switch on (IG).

(b) With the mirror select switch L switch on, check that the outer rear view mirror assembly LH surface moves up, down, left and right normally.

(c) With the mirror select switch R switch on, check that the outer rear view mirror assembly RH surface moves up, down, left and right normally.

CHECK POWER RETRACT MIRROR FUNCTION

(a) Turn the engine switch on (IG).

(b) At each outer rear view mirror assembly position, check the retractable mirror operation when operating the retractable outer mirror switch.

(1) Move both outer rear view mirror assemblies to the driving position.

(2) Press the retractable outer mirror switch on the multiplex network master switch assembly.

(3) Check that the right and left outer rear view mirror assemblies move from the driving position to the retracted position.

(4) Move both outer rear view mirror assemblies to the driving position.

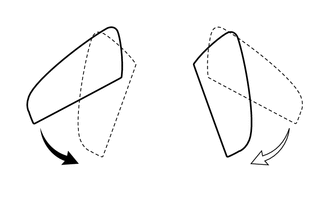

(5) Move one of the outer rear view mirror assemblies to the forward position by hand.

(6) Press the retractable outer mirror switch on the multiplex network master switch assembly.

(7) Check that the outer rear view mirror assembly in the forward position moves to the retracted position, and check that the other mirror moves to the retracted position.

(8) Move the outer rear view mirror assemblies to the driving position.

(9) Move one of the outer rear view mirror assemblies to the retracted position by hand.

(10) Press the retractable outer mirror switch on the multiplex network master switch assembly.

(11) Check that the outer rear view mirror assembly in the driving position moves to the retracted position.

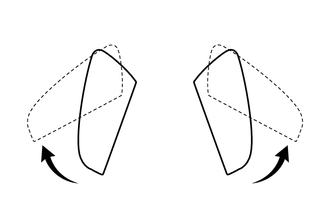

(12) Move both outer rear view mirror assemblies to the retracted position.

(13) Press the retractable outer mirror switch on the multiplex network master switch assembly.

(14) Check that both outer rear view mirror assemblies move from the retracted position to the driving position.

(15) Move both outer rear view mirror assemblies to the retracted position.

(16) Move one of the outer rear view mirror assemblies to the driving position by hand.

(17) Press the retractable outer mirror switch on the multiplex network master switch assembly.

(18) Check that the retracted outer rear view mirror assembly moves to the driving position.

(c) Check the operation of the outer rear view mirror assemblies according to retractable outer mirror switch operations and engine switch condition.

(1) When the outer rear view mirror assemblies are operating, turn the engine switch off and check that the mirror operation stops immediately.

(2) Turn the engine switch on (ACC) and press the retractable outer mirror switch. Check that the outer rear view mirror assemblies operate in the opposite direction.

(d) Check the operation of the outer rear view mirror assembly when it is blocked by an obstacle.

(1) When an outer rear view mirror assembly is moving to the retracted or driving position, block it by hand. Check that stops moving.

(2) With the outer rear view mirror assembly stopped partway, push the retractable outer mirror switch. Check that the outer rear view mirror assembly moves in the opposite direction.

CHECK AUTO POWER RETRACT MIRROR FUNCTION

HINT:

The default setting is Door Lock. If necessary, the function can be set to "ACC" through the customize function.

Click here

(a) With the engine switch off and the auto retractable outer mirror switch on, when the doors are unlocked through the entry function, wireless function or key-linked function, check that both outer rear view mirror assemblies move from the retracted position to the driving position, and stop in the driving position.

(b) With the engine switch off and the auto retractable outer mirror switch on, when the doors are locked through the entry function, wireless function or key-linked function, check that both outer rear view mirror assemblies move from the driving position to the retracted position, and stop in the retracted position.

(c) When the engine switch is on (ACC) and then turned off while the auto retractable outer mirror switch is on, check that both outer rear view mirror assemblies automatically move from the driving position to the retracted position.

(d) When the engine switch is off and then turned on (ACC) while the auto retractable outer mirror switch is on, check that both outer rear view mirror assemblies automatically move from the retracted position to the driving position.

CHECK REVERSE SHIFT-LINKED FUNCTION

(a) Turn the engine switch on (IG).

(b) Turn the mirror select switch L or R switch on.

(c) Check that the mirror surface turns downward when the shift lever is moved to R.

(d) Check that the mirror surface position returns to the original position when one of the following conditions is met:

  • Shift lever is moved to any position other than R.
  • Both mirror select switch L and R switches are off.
  • Engine switch is turned off.

CHECK REVERSE SHIFT-LINKED MIRROR POSITION MEMORIZATION FUNCTION

HINT:

The reverse shift-linked mirror position memorization function can be customized.

Click here

(a) Turn the engine switch on (IG).

(b) Turn the mirror select switch L or R switch on.

(c) Check that the mirror surface turns downward when the shift lever is moved to R.

(d) While the mirror is in the reverse shift-linked operation position, move the mirror surface to the desired position.

HINT:

If the mirror surface is set to turn to the upward position, the mirror surface turns upward when the shift lever is moved to R.

(e) Check that the mirror surface moves to its normal position when the shift lever is moved to a position other than R, and then moves back to the memorized position when the shift lever is moved to R again.

CHECK MIRROR HEATER FUNCTION

(a) Turn the engine switch on (IG).

(b) Check that pressing the mirror heater switch (rear window defogger switch) illuminates the indicator and warms the mirror surfaces.

(c) Check that after approximately 15 minutes, the indicator light turns off and the mirror heaters deactivate.

HINT:

There is a timer extension function which can operate the mirror heaters for up to an additional 45 minutes.
