Lexus RX (RX 350L, RX450h) 2016-2025 Repair Manual: On-vehicle Inspection

ON-VEHICLE INSPECTION

PROCEDURE

1. INSPECT REAR WIPER MOTOR AND BRACKET ASSEMBLY

*A

w/o Rear No. 2 Seat

*B

w/ Rear No. 2 Seat

*a

Alignment Mark

-

-

(a) Operate the rear wiper motor and bracket assembly.

(b) Stop the rear wiper motor and bracket assembly operation.

(c) Check the automatic stop position.

HINT:

After the rear wiper motor is stopped, check the automatic stop position after lifting the wiper blade 2 times.

OK:

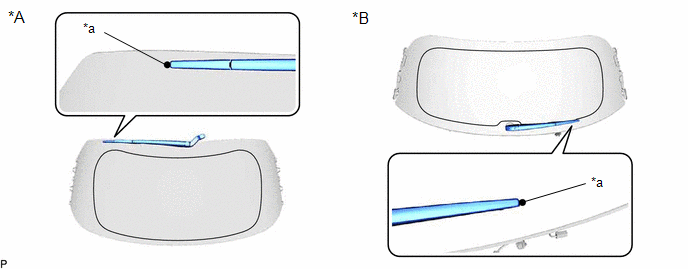

The rear wiper stops at the position shown in the illustration.

    Components
    COMPONENTS ILLUSTRATION *A w/o Rear No. 2 Seat - - *1 REAR WIPER ARM AND BLADE ASSEMBLY *2 REAR WIPER MOTOR AND BRACKET ASSEMBLY *3 REAR WIPER MOTOR GROMMET - - N* ...

    Removal
    REMOVAL PROCEDURE 1. REMOVE REAR SPOILER SUB-ASSEMBLY (w/o Rear No. 2 Seat) Click here 2. REMOVE BACK WINDOW UPPER PANEL TRIM (w/ Rear No. 2 Seat) Click here 3. REMOVE BACK DOOR TRIM COVER LH (w/ ...
