Lexus RX (RX 350L, RX450h) 2016-2024 Repair Manual: Relay
On-vehicle Inspection
ON-VEHICLE INSPECTION
PROCEDURE

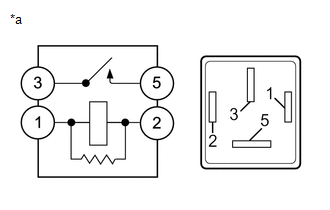

1. INSPECT WIPER RELAY
| (a) Measure the resistance according to the value(s) in the table below. Standard Resistance:
If the result is not as specified, replace the WIPER relay. |
|
2. INSPECT H-LP CLN RELAY
| (a) Measure the resistance according to the value(s) in the table below. Standard Resistance:
If the result is not as specified, replace the H-LP CLN relay. |
|
Replacement
REPLACEMENT PROCEDURE 1. REMOVE REAR WIPER BLADE (w/o Rear No. 2 Seat) (a) Turn the engine switch on (IG). (b) Operate the rear wiper and when the rear wiper arm and blade assembly reach the point ...
