INSPECTION

PROCEDURE

1. INSPECT NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY LH

(a) Apply battery voltage to the connector and check that the No. 1 interior illumination light LH comes on.

OK:

Measurement Condition

Condition

Specified Condition

Battery positive (+) → 2 (B)

Battery negative (-) → 1 (E)

Always

No. 1 interior illumination light LH comes on

If the result is not as specified, replace the No. 1 interior illumination light assembly LH.

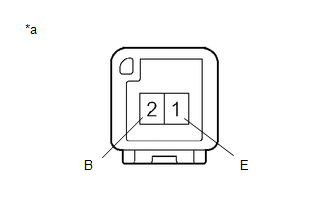

*a

Component without harness connected

(No. 1 Interior Illumination Light Assembly LH)

2. INSPECT NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY RH

(a) Apply battery voltage to the connector and check that the No. 1 interior illumination light RH comes on.

OK:

Measurement Condition

Condition

Specified Condition

Battery positive (+) → 2 (B)

Battery negative (-) → 1 (E)

Always

No. 1 interior illumination light RH comes on

If the result is not as specified, replace the No. 1 interior illumination light assembly RH.

*a

Component without harness connected

(No. 1 Interior Illumination Light Assembly RH)
