Lexus RX (RX 350L, RX450h) 2016-2026 Repair Manual: System Diagram

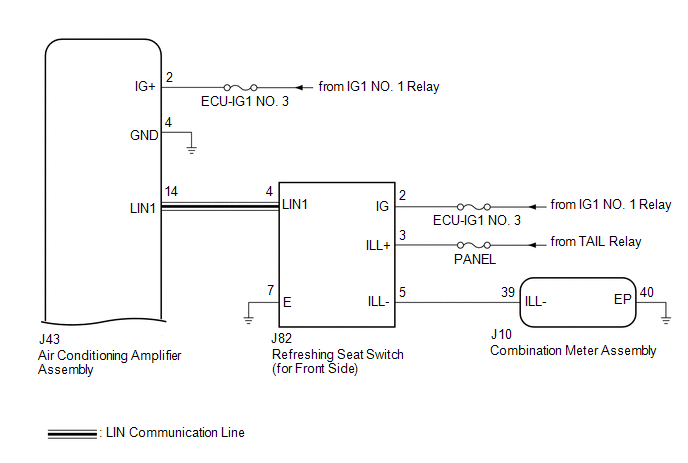

SYSTEM DIAGRAM

    Parts Location
    PARTS LOCATION ILLUSTRATION *1 ENGINE ROOM RELAY BLOCK AND JUNCTION BLOCK ASSEMBLY - ECU-IG1 NO. 9 FUSE - - ILLUSTRATION *1 REFRESHING SEAT SWITCH (for Front Side) *2 COMBINATIO ...

    System Description
    SYSTEM DESCRIPTION GENERAL (a) The seat blower has 3 levels of volume, controlled by operating the refreshing seat switch. (b) Whether the blower is on or off can be determined by checking if the refr ...
