DESCRIPTION

The front passenger squib 2nd step circuit consists of the airbag sensor assembly and instrument panel passenger airbag assembly.

The airbag sensor assembly uses this circuit to deploy the airbag when deployment conditions are met.

These DTCs are stored when a malfunction is detected in the front passenger squib 2nd step circuit.

DTC No.

Detection Item

DTC Detection Condition

Trouble Area

Warning Indicate

Test Mode / Check Mode

B1815

Short in P Squib (Dual Stage - 2nd Step) Circuit

  • The airbag sensor assembly detects a line short in the front passenger squib 2nd step circuit during the primary check.
  • Front passenger squib 2nd step malfunction
  • Airbag sensor assembly malfunction
  • Instrument panel wire
  • No. 2 instrument panel wire
  • Front passenger squib 2nd step (Instrument panel passenger airbag assembly)
  • Airbag sensor assembly

Comes on

Applies to check mode

B1816

Open in P Squib (Dual Stage - 2nd Step) Circuit

  • The airbag sensor assembly detects an open in the front passenger squib 2nd step circuit.
  • Front passenger squib 2nd step malfunction
  • Airbag sensor assembly malfunction
  • Instrument panel wire
  • No. 2 instrument panel wire
  • Front passenger squib 2nd step (Instrument panel passenger airbag assembly)
  • Airbag sensor assembly

Comes on

Applies to check mode

B1817

Short in P Squib (Dual Stage - 2nd Step) Circuit (to Ground)

  • The airbag sensor assembly detects a short to ground in the front passenger squib 2nd step circuit.
  • Front passenger squib 2nd step malfunction
  • Airbag sensor assembly malfunction
  • Instrument panel wire
  • No. 2 instrument panel wire
  • Front passenger squib 2nd step (Instrument panel passenger airbag assembly)
  • Airbag sensor assembly

Comes on

Applies to check mode

B1818

Short in P Squib (Dual Stage - 2nd Step) Circuit (to +B)

  • The airbag sensor assembly detects a short to B+ in the front passenger squib 2nd step circuit.
  • Front passenger squib 2nd step malfunction
  • Airbag sensor assembly malfunction
  • Instrument panel wire
  • No. 2 instrument panel wire
  • Front passenger squib 2nd step (Instrument panel passenger airbag assembly)
  • Airbag sensor assembly

Comes on

Applies to check mode

WIRING DIAGRAM

CAUTION / NOTICE / HINT

NOTICE:

After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

Click here

HINT:

  • Perform the simulation method by selecting check mode (Signal Check) using the Techstream.

    Click here

  • After selecting check mode (Signal Check), perform the simulation method by wiggling each connector of the airbag system or driving the vehicle on a city road or rough road.

    Click here

PROCEDURE

1.

CHECK CONNECTORS

(a) Turn the engine switch off.

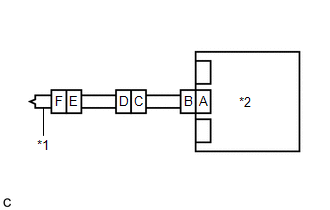

*1

Instrument Panel Passenger Airbag Assembly

*2

Airbag Sensor Assembly

*3

No. 2 Instrument Panel Wire

*4

Instrument Panel Wire

(b) Disconnect the cable from the negative (-) battery terminal.

CAUTION:

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

(c) Check that the connectors are properly connected to the instrument panel passenger airbag assembly and airbag sensor assembly. Also check that the connectors that link the instrument panel wire and No. 2 instrument panel wire are properly connected.

OK:

The connectors are properly connected.

HINT:

If the connectors are not properly connected, reconnect the connectors and proceed to the next inspection.

(d) Disconnect the connectors from the instrument panel passenger airbag assembly and airbag sensor assembly. Also disconnect the instrument panel wire from the No. 2 instrument panel wire.

(e) Check that the terminals of the connectors are not deformed or damaged.

OK:

The terminals are not deformed or damaged.

(f) Check that the No. 2 instrument panel wire connector (on the instrument panel passenger airbag assembly side) is not loose, deformed or damaged.

OK:

The airbag connector locking button is not disengaged, and the claw of the lock is not deformed or damaged.

(g) Check that the short springs of the activation prevention mechanisms of the instrument panel wire connector and No. 2 instrument panel wire connector are not deformed or damaged.

OK:

The short springs are not deformed or damaged.

NG

REPLACE WIRE HARNESS

OK

2.

CHECK INSTRUMENT PANEL PASSENGER AIRBAG ASSEMBLY

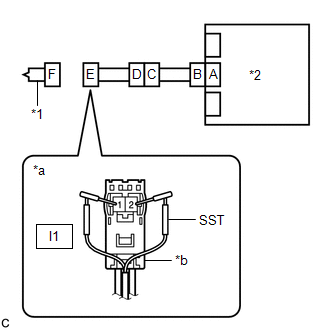

(a) Connect the instrument panel wire to the No. 2 instrument panel wire and airbag sensor assembly.

*1

Instrument Panel Passenger Airbag Assembly

*2

Airbag Sensor Assembly

*a

Front view of wire harness connector

(to Instrument Panel Passenger Airbag Assembly)

*b

Color: Black

(b) Connect SST (resistance 2.1 Ω) to connector E (black connector).

CAUTION:

Never connect a tester to the instrument panel passenger airbag assembly for measurement, as this may lead to a serious injury due to airbag deployment.

NOTICE:

  • Do not forcibly insert SST into the terminals of the connector when connecting it.
  • Insert SST straight into the terminals of the connector.

SST: 09843-18061

(c) Connect the cable to the negative (-) battery terminal.

(d) Turn the engine switch on (IG), and wait for at least 60 seconds.

(e) Clear the DTCs stored in memory.

Body Electrical > SRS Airbag > Clear DTCs

(f) Turn the engine switch off.

(g) Turn the engine switch on (IG), and wait for at least 60 seconds.

(h) Check for DTCs.

Body Electrical > SRS Airbag > Trouble Codes

OK:

DTC B1815, B1816, B1817 or B1818 is not output.

HINT:

Codes other than DTCs B1815, B1816, B1817 and B1818 may be output at this time, but they are not related to this check.

(i) Turn the engine switch off.

(j) Disconnect the cable from the negative (-) battery terminal.

CAUTION:

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

(k) Disconnect SST from connector E.

OK

REPLACE INSTRUMENT PANEL PASSENGER AIRBAG ASSEMBLY

NG

3.

CHECK FRONT PASSENGER SQUIB 2ND STEP CIRCUIT

(a) Disconnect the instrument panel wire from the airbag sensor assembly.

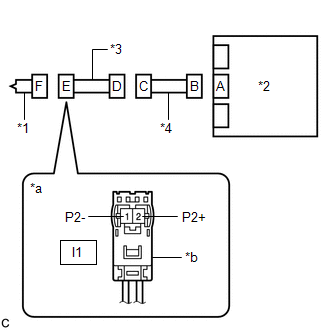

*1

Instrument Panel Passenger Airbag Assembly

*2

Airbag Sensor Assembly

*a

Front view of wire harness connector

(to Instrument Panel Passenger Airbag Assembly)

*b

Color: Black

(b) Check for a short to B+ in the circuit.

(1) Connect the cable to the negative (-) battery terminal.

(2) Turn the engine switch on (IG).

(3) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Condition

Specified Condition

I1-2 (P2+) - Body ground

Engine switch on (IG)

Below 1 V

I1-1 (P2-) - Body ground

Engine switch on (IG)

Below 1 V

(4) Turn the engine switch off.

(5) Disconnect the cable from the negative (-) battery terminal.

CAUTION:

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

(c) Check for an open in the circuit.

(1) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

I1-2 (P2+) - I1-1 (P2-)

Always

Below 1 Ω

(d) Check for a short to ground in the circuit.

(1) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

I1-2 (P2+) - Body ground

Always

1 MΩ or higher

I1-1 (P2-) - Body ground

Always

1 MΩ or higher

(e) Check for a short in the circuit.

(1) Release the activation prevention mechanism built into connector B.

Click here

(2) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

I1-2 (P2+) - I1-1 (P2-)

Always

1 MΩ or higher

(3) Restore the released activation prevention mechanism of connector B to the original condition.

NG

GO TO STEP 5

OK

4.

CHECK DTC

(a) Connect the connectors to the instrument panel passenger airbag assembly and airbag sensor assembly.

*1

Instrument Panel Passenger Airbag Assembly

*2

Airbag Sensor Assembly

(b) Connect the cable to the negative (-) battery terminal.

(c) Turn the engine switch on (IG), and wait for at least 60 seconds.

(d) Clear the DTCs stored in memory.

Body Electrical > SRS Airbag > Clear DTCs

(e) Turn the engine switch off.

(f) Turn the engine switch on (IG), and wait for at least 60 seconds.

(g) Check for DTCs.

Body Electrical > SRS Airbag > Trouble Codes

OK:

DTC B1815, B1816, B1817 or B1818 is not output.

HINT:

Codes other than DTCs B1815, B1816, B1817 and B1818 may be output at this time, but they are not related to this check.

OK

USE SIMULATION METHOD TO CHECK

NG

REPLACE AIRBAG SENSOR ASSEMBLY

5.

CHECK INSTRUMENT PANEL WIRE

(a) Disconnect the No. 2 instrument panel wire from the instrument panel wire.

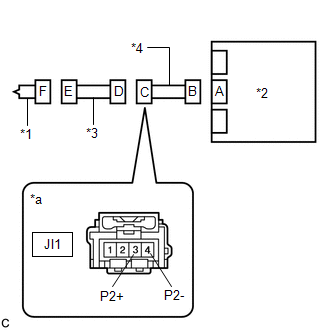

*1

Instrument Panel Passenger Airbag Assembly

*2

Airbag Sensor Assembly

*3

No. 2 Instrument Panel Wire

*4

Instrument Panel Wire

*a

Front view of wire harness connector

(to No. 2 Instrument Panel Wire)

(b) Check for a short to B+ in the circuit.

(1) Connect the cable to the negative (-) battery terminal.

(2) Turn the engine switch on (IG).

(3) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Condition

Specified Condition

JI1-3 (P2+) - Body ground

Engine switch on (IG)

Below 1 V

JI1-4 (P2-) - Body ground

Engine switch on (IG)

Below 1 V

(4) Turn the engine switch off.

(5) Disconnect the cable from the negative (-) battery terminal.

CAUTION:

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

(c) Check for an open in the circuit.

(1) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

JI1-3 (P2+) - JI1-4 (P2-)

Always

Below 1 Ω

(d) Check for a short to ground in the circuit.

(1) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

JI1-3 (P2+) - Body ground

Always

1 MΩ or higher

JI1-4 (P2-) - Body ground

Always

1 MΩ or higher

(e) Check for a short in the circuit.

(1) Release the activation prevention mechanism built into connector B.

Click here

(2) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

JI1-3 (P2+) - JI1-4 (P2-)

Always

1 MΩ or higher

(3) Restore the released activation prevention mechanism of connector B to the original condition.

NG

REPLACE INSTRUMENT PANEL WIRE

OK

6.

CHECK NO. 2 INSTRUMENT PANEL WIRE

(a) Check for a short to B+ in the circuit.

(1) Connect the cable to the negative (-) battery terminal.

(2) Turn the engine switch on (IG).

(3) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Condition

Specified Condition

I1-2 (P2+) - Body ground

Engine switch on (IG)

Below 1 V

I1-1 (P2-) - Body ground

Engine switch on (IG)

Below 1 V

(4) Turn the engine switch off.

(5) Disconnect the cable from the negative (-) battery terminal.

CAUTION:

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

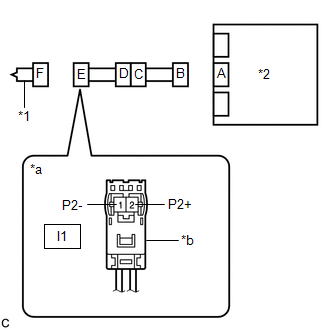

*1

Instrument Panel Passenger Airbag Assembly

*2

Airbag Sensor Assembly

*3

No. 2 Instrument Panel Wire

*4

Instrument Panel Wire

*a

Front view of wire harness connector

(to Instrument Panel Passenger Airbag Assembly)

*b

Color: Black

(b) Check for an open in the circuit.

(1) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

I1-2 (P2+) - I1-1 (P2-)

Always

Below 1 Ω

(c) Check for a short to ground in the circuit.

(1) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

I1-2 (P2+) - Body ground

Always

1 MΩ or higher

I1-1 (P2-) - Body ground

Always

1 MΩ or higher

(d) Check for a short in the circuit.

(1) Release the activation prevention mechanism built into connector D.

Click here

(2) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

I1-2 (P2+) - I1-1 (P2-)

Always

1 MΩ or higher

(3) Restore the released activation prevention mechanism of connector D to the original condition.

OK

USE SIMULATION METHOD TO CHECK

NG

REPLACE NO. 2 INSTRUMENT PANEL WIRE

    Short in D Squib (Dual Stage - 2nd Step) Circuit (B1810-B1813)
    DESCRIPTION The driver squib 2nd step circuit consists of the airbag sensor assembly, spiral cable sub-assembly and horn button assembly. The airbag sensor assembly uses this circuit to deploy the air ...

    Short in Side Squib (RH) Circuit (B1820-B1823)
    DESCRIPTION The front side squib RH circuit consists of the airbag sensor assembly and front seat airbag assembly RH. The airbag sensor assembly uses this circuit to deploy the airbag when deployment ...

    Other materials:

    Lexus RX (RX 350L, RX450h) 2016-2024 Owners Manual > Using the air conditioning system and defogger: Heated steering wheel/ seat heaters/ seat ventilators
    Heated steering wheel and seat heaters heat the side grips of the steering wheel and seats, respectively. Seat ventilators maintain good ventilation using a fan built into the seats. WARNING Care should be taken to prevent injury if anyone in the following categories comes in contact w ...

    Lexus RX (RX 350L, RX450h) 2016-2024 Repair Manual > Automatic Transaxle Fluid: Replacement
    REPLACEMENT PROCEDURE 1. REMOVE FRONT WHEEL OPENING EXTENSION PAD LH Click here 2. REMOVE NO. 3 ENGINE UNDER COVER Click here 3. REMOVE FRONT FENDER APRON SEAL LH Click here 4. REPLACE AUTOMATIC TRANSAXLE FLUID (a) Lift the vehicle. [#1] NOTICE: Set the vehicle on a lift so that the v ...

    Lexus RX (RX 350L, RX450h) 2016-{YEAR} Owners Manual

    Lexus RX (RX 350L, RX450h) 2016-{YEAR} Repair Manual

    © 2024 Copyright www.lexusrx.net
    0.0139
