Lexus RX (RX 350L, RX450h) 2016-2023 Repair Manual: Parts Location
PARTS LOCATION
ILLUSTRATION
| *A | w/o Rear No. 2 Seat | - | - |
| *1 | FRONT CORNER ULTRASONIC SENSOR RH | *2 | FRONT CENTER ULTRASONIC SENSOR RH |
| *3 | FRONT CENTER ULTRASONIC SENSOR LH | *4 | FRONT CORNER ULTRASONIC SENSOR LH |
| *5 | REAR CORNER ULTRASONIC SENSOR RH | *6 | REAR CENTER ULTRASONIC SENSOR RH |
| *7 | REAR CENTER ULTRASONIC SENSOR LH | *8 | REAR CORNER ULTRASONIC SENSOR LH |
| *9 | ECM | *10 | REAR TELEVISION CAMERA ASSEMBLY (w/ Parking Assist Monitor System) |
| *11 | NO. 2 CLEARANCE WARNING BUZZER | - | - |
ILLUSTRATION
| *A | w/ Rear No. 2 Seat | - | - |
| *1 | FRONT CORNER ULTRASONIC SENSOR RH | *2 | FRONT CENTER ULTRASONIC SENSOR RH |
| *3 | FRONT CENTER ULTRASONIC SENSOR LH | *4 | FRONT CORNER ULTRASONIC SENSOR LH |
| *5 | REAR CORNER ULTRASONIC SENSOR RH | *6 | REAR CENTER ULTRASONIC SENSOR RH |
| *7 | REAR CENTER ULTRASONIC SENSOR LH | *8 | REAR CORNER ULTRASONIC SENSOR LH |
| *9 | ECM | *10 | REAR TELEVISION CAMERA ASSEMBLY (w/ Parking Assist Monitor System) |
| *11 | NO. 2 CLEARANCE WARNING BUZZER | - | - |
ILLUSTRATION
| *A | for Optitron Meter Type | *B | for TFT Meter Type |
| *1 | MULTI-INFORMATION DISPLAY | *2 | CLEARANCE SONAR INDICATOR |
| *3 | COMBINATION METER ASSEMBLY | *4 | CLEARANCE WARNING ECU ASSEMBLY |
| *5 | NO. 1 CLEARANCE WARNING BUZZER | - | - |

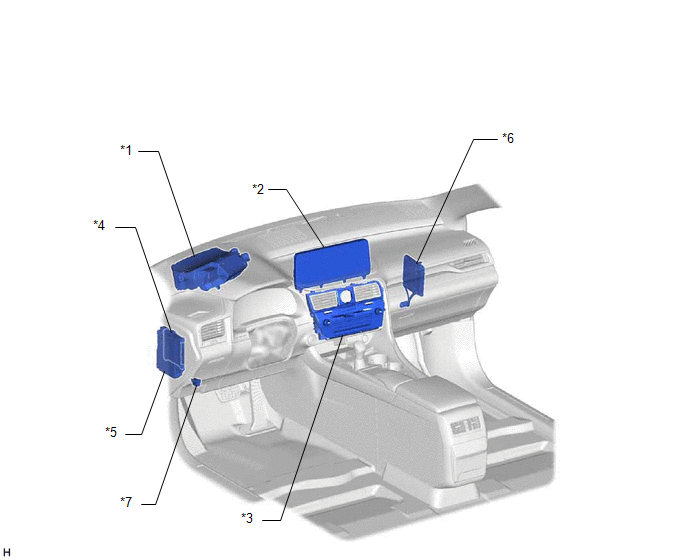

ILLUSTRATION
| *1 | HEADUP DISPLAY (METER MIRROR SUB-ASSEMBLY) (w/ Headup Display System) | *2 | MULTI-DISPLAY ASSEMBLY |
| *3 | RADIO RECEIVER ASSEMBLY | *4 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *5 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-IG1 NO. 1 FUSE | *6 | PARKING ASSIST ECU (w/ Panoramic View Monitor System) |
| *7 | DLC3 | - | - |
