DISASSEMBLY

PROCEDURE

1. REMOVE BREATHER PLUG HOSE

(a) Using a screwdriver with its tip wrapped with protective tape, remove the breather plug hose from the breather plug.

NOTICE:

Be careful not to damage the breather plug.

(b) Using a screwdriver with its tip wrapped with protective tape, remove the No. 1 breather plug (ATM) from the breather plug hose.

NOTICE:

Be careful not to damage the No. 1 breather plug (ATM).

*1

No. 1 Breather Plug (ATM)

*2

Breather Hose Clamp

*3

Transmission Breather Clamp

*4

Breather Plug Hose

(c) Remove the breather hose clamp and transmission breather clamp from the breather plug hose.

2. REMOVE TRANSMISSION CONTROL SHAFT LEVER

(a) Remove the nut and transmission control shaft lever from the manual valve lever sub-assembly.

3. REMOVE PARK/NEUTRAL POSITION SWITCH ASSEMBLY

(a) Using a screwdriver, bend back the tabs of the lock plate and remove the lock nut and lock plate from the park/neutral position switch assembly.

(b) Remove the 2 bolts and park/neutral position switch assembly from the automatic transaxle case sub-assembly.

4. REMOVE DRAIN PLUG

(a) Using a T40 "TORX" socket wrench, remove the drain plug from the overflow plug.

(b) Remove the O-ring from the drain plug.

5. REMOVE OVERFLOW PLUG

(a) Using a 17 mm straight hexagon wrench, remove the overflow plug from the transaxle housing.

(b) Remove the O-ring from the overflow plug.

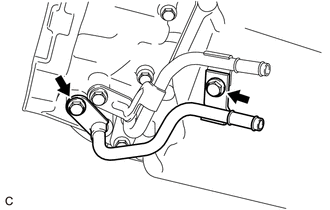

6. REMOVE OUTLET NO. 1 OIL COOLER TUBE SUB-ASSEMBLY

(a) Remove the 2 bolts and outlet No. 1 oil cooler tube sub-assembly from the transaxle housing.

(b) Remove the O-ring from the outlet No. 1 oil cooler tube sub-assembly.

7. REMOVE INLET NO. 1 OIL COOLER TUBE SUB-ASSEMBLY

(a) Remove the 2 bolts and inlet No. 1 oil cooler tube sub-assembly from the transaxle housing.

(b) Remove the O-ring from the inlet No. 1 oil cooler tube sub-assembly.

8. REMOVE REFILL PLUG

(a) Remove the refill plug from the automatic transaxle case sub-assembly.

(b) Remove the gasket from the refill plug.

9. REMOVE TRANSMISSION CASE PLUG ASSEMBLY

(a) Using a screwdriver with its tip wrapped with protective tape, remove the transmission case plug assembly from the transaxle housing.

NOTICE:

Be careful not to damage the transaxle housing.

*a

Protective Tape

10. REMOVE TRANSAXLE SIDE COVER SUB-ASSEMBLY

(a) Using a T40 "TORX" socket wrench, remove the 13 bolts.

(b) Insert the blade of an oil pan seal cutter between the transaxle side cover sub-assembly and automatic transaxle case sub-assembly. Cut through the applied seal packing and remove the transaxle side cover sub-assembly.

NOTICE:

Be careful not to damage the sealing surface of the automatic transaxle case sub-assembly.

11. REMOVE TRANSMISSION OIL CLEANER MAGNET

(a) Remove the 2 transmission oil cleaner magnets from the transaxle side cover sub-assembly.

*1

Transmission Oil Cleaner Magnet

12. REMOVE TRANSMISSION VALVE BODY ASSEMBLY

Click here

13. REMOVE TRANSMISSION WIRE

Click here

14. REMOVE TRANSMISSION REVOLUTION SENSOR (NC3)

Click here

15. REMOVE TRANSMISSION REVOLUTION SENSOR (NT)

Click here

16. INSPECT INPUT SHAFT END PLAY

Click here

17. REMOVE TRANSAXLE HOUSING

(a) Remove the 24 bolts.

(b) Using a plastic hammer, tap on the circumference of the transaxle housing to remove it from the automatic transaxle case sub-assembly.

18. REMOVE DIFFERENTIAL GEAR LUBE APPLY TUBE

(a) Remove the bolt and clamp from the transaxle housing.

(b) Remove the differential gear lube apply tube from the transaxle housing.

19. REMOVE TRANSAXLE HOUSING OIL SEPARATOR

(a) Remove the 2 bolts and transaxle housing oil separator from the transaxle housing.

(b) Remove the 3 transmission oil cleaner magnets from the transaxle housing oil separator.

20. INSPECT TRANSMISSION OIL CLEANER MAGNET

Click here

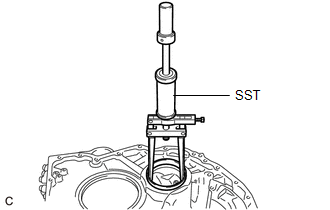

21. REMOVE DIFFERENTIAL CASE TAPERED ROLLER BEARING (FRONT SIDE OUTER RACE)

(a) Using SST, remove the differential case tapered roller bearing (front side outer race) from the transaxle housing.

SST: 09308-00010

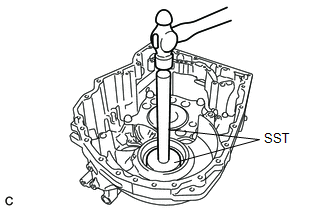

22. REMOVE FRONT DRIVE SHAFT OIL SEAL RH

(a) Using SST and a hammer, remove the front drive shaft oil seal RH from the transaxle housing.

SST: 09950-60010

09951-00550

SST: 09950-70010

09951-07200

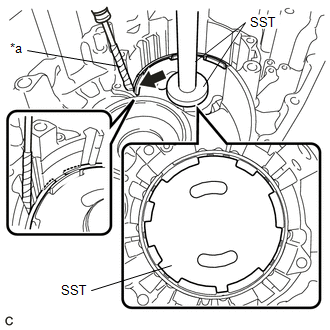

23. REMOVE COUNTER DRIVEN GEAR TAPERED ROLLER BEARING (FRONT SIDE OUTER RACE)

(a) Using a screwdriver with its tip wrapped with protective tape, pry up the counter driven gear tapered roller bearing (front side outer race).

NOTICE:

Be careful not to damage the transaxle housing.

*a

Protective Tape

(b) Using SST, remove the counter driven gear tapered roller bearing (front side outer race) from the transaxle housing.

SST: 09308-36010

24. INSPECT B-1 BRAKE PISTON ROD STROKE

Click here

25. REMOVE FRONT OIL PUMP ASSEMBLY

(a) Remove the 3 transaxle case gaskets from the front oil pump assembly.

(b) Remove the front oil pump body O-ring from the front oil pump assembly.

(c) Remove the 7 bolts and front oil pump assembly from the automatic transaxle case sub-assembly.

(d) Remove the planetary carrier thrust washer from the front oil pump assembly.

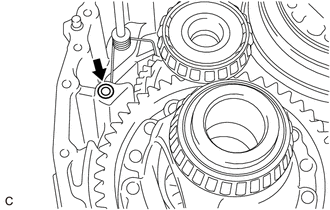

26. REMOVE NO. 1 GOVERNOR APPLY GASKET

(a) Remove the No. 1 governor apply gasket from the automatic transaxle case sub-assembly.

27. REMOVE MANUAL DETENT SPRING SUB-ASSEMBLY

(a) Remove the bolt, manual detent spring cover and manual detent spring sub-assembly from the automatic transaxle case sub-assembly.

*1

Manual Detent Spring Cover

*2

Manual Detent Spring Sub-assembly

28. REMOVE PARKING LOCK ROD SUB-ASSEMBLY

(a) Remove the bolt, spring guide sleeve and torsion spring from the automatic transaxle case sub-assembly.

(b) Remove the bolt and parking lock pawl bracket from the automatic transaxle case sub-assembly.

(c) Remove the parking lock rod sub-assembly from the manual valve lever sub-assembly.

HINT:

Align the slot with the notches on the manual valve lever sub-assembly to remove the parking lock rod sub-assembly.

29. REMOVE PARKING LOCK PAWL

(a) Remove the parking lock pawl shaft and torsion spring from the automatic transaxle case sub-assembly.

*1

Parking Lock Pawl Shaft

*2

Torsion Spring

(b) Remove the parking lock pawl from the automatic transaxle case sub-assembly.

30. REMOVE PARKING LOCK PIN SUB-ASSEMBLY

(a) Remove the parking lock pin sub-assembly from the automatic transaxle case sub-assembly.

31. REMOVE MANUAL VALVE LEVER SUB-ASSEMBLY

(a) Remove the manual valve lever sub-assembly from the automatic transaxle case sub-assembly.

32. REMOVE C-3 AND C-4 CLUTCH ASSEMBLY

(a) Remove the bolt from the automatic transaxle case sub-assembly.

(b) Remove the B-1 brake band assembly from the C-3 and C-4 clutch drum.

(c) Remove the C-3 and C-4 clutch assembly with front planetary gear assembly from the automatic transaxle case sub-assembly.

(d) Remove the C-3 and C-4 clutch assembly from the front planetary gear assembly.

33. REMOVE FRONT PLANETARY GEAR ASSEMBLY

(a) Remove the No. 2 planetary carrier thrust washer and No. 7 thrust bearing race from the front planetary gear assembly.

*1

No. 2 Planetary Carrier Thrust Washer

*2

No. 7 Thrust Bearing Race

(b) Remove the planetary sun gear from the front planetary gear assembly.

(c) Remove the No. 9 thrust bearing race, thrust needle roller bearing and No. 8 thrust bearing race from the front planetary gear assembly.

*1

No. 9 Thrust Bearing Race

*2

Thrust Needle Roller Bearing

*3

No. 8 Thrust Bearing Race

(d) Remove the 2 rear input shaft oil seal rings from the front planetary gear assembly.

(e) Remove the 4 input shaft oil seal rings from the front planetary gear assembly.

(f) Remove the needle roller bearing from the front planetary gear assembly.

34. INSPECT FRONT PLANETARY GEAR ASSEMBLY

Click here

35. REMOVE FRONT PLANETARY RING GEAR

(a) Remove the thrust needle roller bearing from the front planetary ring gear flange.

(b) Remove the front planetary ring gear with front planetary ring gear flange from the C-1 clutch assembly.

(c) Using a screwdriver with its tip wrapped with protective tape, remove the snap ring from the front planetary ring gear.

NOTICE:

Be careful not to damage the front planetary ring gear.

*a

Protective Tape

(d) Remove the front planetary ring gear flange from the front planetary ring gear.

36. REMOVE C-1 CLUTCH ASSEMBLY

(a) Remove the thrust needle roller bearing and No. 6 thrust bearing race from the C-1 clutch assembly.

*1

Thrust Needle Roller Bearing

*2

No. 6 Thrust Bearing Race

(b) Remove the C-1 clutch assembly from the rear planetary sun gear sub-assembly.

37. INSPECT CLEARANCE OF C-1 CLUTCH

Click here

38. REMOVE FORWARD MULTIPLE DISC CLUTCH DISC

(a) Using a screwdriver with its tip wrapped with protective tape, remove the snap ring from the clutch drum sub-assembly.

NOTICE:

Be careful not to damage the clutch drum sub-assembly.

*a

Protective Tape

(b) Remove the forward clutch flange, 5 forward multiple disc clutch discs and 5 forward multiple disc clutch plates from the clutch drum sub-assembly.

*1

Forward Clutch Flange

*2

Forward Multiple Disc Clutch Disc

*3

Forward Multiple Disc Clutch Plate

39. INSPECT FORWARD MULTIPLE DISC CLUTCH DISC

Click here

40. REMOVE NO. 1 CLUTCH BALANCER

(a) Place SST on the No. 1 clutch balancer and compress the forward clutch return spring sub-assembly with a press.

SST: 09387-00020

(b) Using a snap ring expander, remove the snap ring from the clutch drum sub-assembly.

NOTICE:

Do not expand the snap ring excessively.

(c) Remove the No. 1 clutch balancer from the clutch drum sub-assembly.

41. REMOVE FORWARD CLUTCH RETURN SPRING SUB-ASSEMBLY

(a) Remove the forward clutch return spring sub-assembly from the clutch drum sub-assembly.

42. INSPECT FORWARD CLUTCH RETURN SPRING SUB-ASSEMBLY

Click here

43. REMOVE FORWARD CLUTCH PISTON

(a) Cover the ATF hole shown in the illustration and apply compressed air (approximately 392 kPa (4.0 kgf/cm2, 57 psi)) to the ATF hole.

*a

ATF Hole

(b) Remove the forward clutch piston from the clutch drum sub-assembly.

(c) Remove the O-ring from the forward clutch piston.

44. REMOVE C-1 DRUM O-RING

(a) Remove the 2 C-1 drum O-rings from the clutch drum sub-assembly.

45. REMOVE INPUT SUN GEAR DRUM

(a) Remove the thrust needle roller bearing and No. 5 thrust bearing race from the input sun gear drum.

*1

Thrust Needle Roller Bearing

*2

No. 5 Thrust Bearing Race

(b) Remove the input sun gear drum from the rear planetary gear assembly.

46. REMOVE PINION AND COUNTER DRIVEN GEAR SUB-ASSEMBLY

(a) Remove the pinion and counter driven gear sub-assembly from the automatic transaxle case sub-assembly.

47. REMOVE COUNTER DRIVEN GEAR TAPERED ROLLER BEARING (FRONT SIDE INNER RACE)

(a) Using SST and a press, remove the counter driven gear tapered roller bearing (front side inner race) from the pinion and counter driven gear sub-assembly.

SST: 09950-00020

SST: 09950-60010

09951-00400

SST: 09950-70010

09951-07100

48. REMOVE COUNTER DRIVEN GEAR TAPERED ROLLER BEARING (REAR SIDE INNER RACE)

(a) Using SST, remove the counter driven gear tapered roller bearing (rear side inner race) from the pinion and counter driven gear sub-assembly.

SST: 09950-40011

09951-04010

09952-04010

09953-04030

09954-04010

09955-04061

09957-04010

09958-04011

SST: 09950-60010

09951-00320

*a

Turn

*b

Hold

49. REMOVE TIGHT PLUG (COUNTER DRIVEN GEAR SIDE)

(a) Using a screwdriver with its tip wrapped with protective tape, remove the tight plug (counter driven gear side) from the pinion and counter driven gear sub-assembly.

NOTICE:

Be careful not to damage the pinion and counter driven gear sub-assembly.

*1

Tight Plug (Counter Driven Gear Side)

*a

Protective Tape

50. REMOVE TIGHT PLUG (DIFFERENTIAL DRIVEN PINION SIDE)

(a) Using a brass bar and a hammer, remove the tight plug (differential drive pinion side) from the pinion and counter driven gear sub-assembly.

NOTICE:

Be careful not to damage the pinion and counter driven gear sub-assembly.

*1

Tight Plug (Differential Drive Pinion Side)

*a

Brass Bar

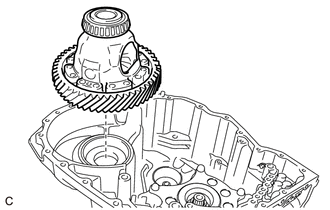

51. REMOVE DIFFERENTIAL CASE ASSEMBLY

(a) Remove the differential case assembly from the automatic transaxle case sub-assembly.

52. REMOVE DIFFERENTIAL CASE TAPERED ROLLER BEARING (REAR SIDE OUTER RACE)

(a) Using SST, remove the differential case tapered roller bearing (rear side outer race) and shim from the automatic transaxle case sub-assembly.

SST: 09308-00010

53. REMOVE FRONT DRIVE SHAFT OIL SEAL LH

(a) Using SST and a hammer, remove the front drive shaft oil seal LH from the automatic transaxle case sub-assembly.

SST: 09950-60010

09951-00650

SST: 09950-70010

09951-07200

54. REMOVE COUNTER DRIVEN GEAR TAPERED ROLLER BEARING (REAR SIDE OUTER RACE)

(a) Using SST, remove the counter driven gear tapered roller bearing (rear side outer race) and shim from the automatic transaxle case sub-assembly.

SST: 09308-00010

55. REMOVE TRANSMISSION LUBE APPLY TUBE

(a) Remove the bolt and clamp from the automatic transaxle case sub-assembly.

(b) Remove the transmission lube apply tube from the automatic transaxle case sub-assembly.

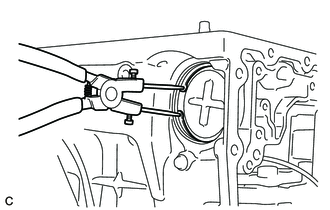

56. REMOVE B-1 BRAKE PISTON

(a) Using snap ring pliers, remove the snap ring from the automatic transaxle case sub-assembly.

(b) Set the automatic transaxle case sub-assembly so that the B-1 brake piston is positioned downward.

(c) Apply compressed air (approximately 392 kPa (4.0 kgf/cm2, 57 psi)) to the ATF hole.

NOTICE:

  • Make sure that the B-1 brake piston is positioned downward. Applying compressed air will remove the B-1 brake piston.
  • Use a piece of cloth to keep the B-1 brake piston from flying out.

(d) Remove the brake piston cover, B-1 brake piston and B-1 brake piston compression spring from the automatic transaxle case sub-assembly.

*1

B-1 Brake Piston Compression Spring

*2

B-1 Brake Piston

*3

Brake Piston Cover

(e) Remove the 3 O-rings from the brake piston cover.

(f) Remove the O-ring from the B-1 brake piston.

57. REMOVE FRONT PLANETARY GEAR SUB-ASSEMBLY

(a) Disengage the wire harness clamp.

(b) Remove the bolt and clamp from the automatic transaxle case sub-assembly.

(c) Using a T55 "TORX" socket wrench, remove the 6 bolts.

(d) Remove the front planetary gear sub-assembly from the automatic transaxle case sub-assembly.

(e) Remove the bolt, transmission revolution sensor (NC) and spacer from the front planetary gear sub-assembly.

*1

Transmission Revolution Sensor (NC)

*2

Spacer

58. REMOVE PLANETARY SUN GEAR SUB-ASSEMBLY

(a) Remove the planetary sun gear sub-assembly from the rear planetary gear assembly.

(b) Remove the thrust needle roller bearing from the rear planetary gear assembly.

59. REMOVE REAR PLANETARY GEAR ASSEMBLY

(a) Remove the No. 3 planetary carrier thrust washer from the rear planetary gear assembly.

(b) Using a screwdriver with its tip wrapped with protective tape, remove the snap ring from the automatic transaxle case sub-assembly.

NOTICE:

Be careful not to damage the automatic transaxle case sub-assembly.

*a

Protective Tape

(c) Remove the one-way clutch assembly with rear planetary gear assembly from the C-2 clutch assembly.

(d) Remove the one-way clutch assembly from the rear planetary gear assembly.

(e) Remove the No. 4 planetary carrier thrust washer from the rear planetary gear assembly.

60. INSPECT ONE-WAY CLUTCH ASSEMBLY

Click here

61. INSPECT REAR PLANETARY GEAR ASSEMBLY

Click here

62. REMOVE REAR PLANETARY SUN GEAR SUB-ASSEMBLY

(a) Remove the rear planetary sun gear sub-assembly from the C-2 clutch assembly.

*1

No. 4 Thrust Bearing Race

*2

Rear Planetary Sun Gear Sub-assembly

*3

No. 3 Thrust Bearing Race

(b) Remove the No. 4 thrust bearing race and No. 3 thrust bearing race from the rear planetary sun gear sub-assembly.

63. INSPECT REAR PLANETARY SUN GEAR SUB-ASSEMBLY

Click here

64. INSPECT CLEARANCE OF NO. 2 BRAKE

Click here

65. INSPECT CLEARANCE OF C-2 CLUTCH

Click here

66. REMOVE 1ST AND REVERSE BRAKE CLUTCH DISC

(a) Using a screwdriver with its tip wrapped with protective tape, remove the snap ring from the automatic transaxle case sub-assembly.

NOTICE:

Be careful not to damage the automatic transaxle case sub-assembly.

*a

Protective Tape

(b) Remove the 2 1st and reverse brake flanges, 5 1st and reverse brake clutch discs and 4 1st and reverse brake clutch plates from the automatic transaxle case sub-assembly.

*1

1st and Reverse Brake Flange

*2

1st and Reverse Brake Clutch Disc

*3

1st and Reverse Brake Clutch Plate

67. INSPECT 1ST AND REVERSE BRAKE CLUTCH DISC

Click here

68. REMOVE C-2 CLUTCH ASSEMBLY

(a) Remove the thrust needle roller bearing and No. 2 thrust bearing race from the C-2 clutch assembly.

*1

Thrust Needle Roller Bearing

*2

No. 2 Thrust Bearing Race

(b) Remove the C-2 clutch assembly from the automatic transaxle case sub-assembly.

*1

C-2 Clutch Assembly

*2

Thrust Needle Roller Bearing

(c) Remove the thrust needle roller bearing from the C-2 clutch assembly.

69. REMOVE NO. 2 CLUTCH DISC

(a) Using a screwdriver with its tip wrapped with protective tape, remove the snap ring from the intermediate shaft sub-assembly.

NOTICE:

Be careful not to damage the intermediate shaft sub-assembly.

*a

Protective Tape

(b) Remove the direct clutch flange, 4 No. 2 clutch discs and 4 No. 2 clutch plates from the intermediate shaft sub-assembly.

*1

Direct Clutch Flange

*2

No. 2 Clutch Disc

*3

No. 2 Clutch Plate

70. INSPECT NO. 2 CLUTCH DISC

Click here

71. REMOVE C-2 CLUTCH BALANCER

(a) Place SST on the C-2 clutch balancer and compress the clutch return with retainer spring sub-assembly with a press.

SST: 09387-00020

(b) Using a snap ring expander, remove the snap ring from the intermediate shaft sub-assembly.

NOTICE:

Do not expand the snap ring excessively.

(c) Apply compressed air (approximately 392 kPa (4.0 kgf/cm2, 57 psi)) to the ATF hole.

(d) Remove the C-2 clutch balancer from the intermediate shaft sub-assembly.

72. REMOVE CLUTCH RETURN WITH RETAINER SPRING SUB-ASSEMBLY

(a) Remove the clutch return with retainer spring sub-assembly from the intermediate shaft sub-assembly.

73. INSPECT CLUTCH RETURN WITH RETAINER SPRING SUB-ASSEMBLY

Click here

74. REMOVE C-2 CLUTCH PISTON

(a) Cover the ATF holes shown in the illustration and apply compressed air (approximately 392 kPa (4.0 kgf/cm2, 57 psi)) to the ATF hole.

*a

ATF Hole

(b) Remove the C-2 clutch piston from the intermediate shaft sub-assembly.

75. REMOVE INTERMEDIATE SHAFT O-RING

(a) Remove the 2 intermediate shaft O-rings from the intermediate shaft sub-assembly.

76. REMOVE 1ST AND REVERSE BRAKE PISTON

(a) Place SST on the 1st and reverse brake return spring sub-assembly and compress it with a press.

SST: 09387-00140

SST: 09950-60010

09951-00650

SST: 09950-70010

09951-07200

NOTICE:

  • Place SST on the 1st and reverse brake return spring sub-assembly as shown in the illustration.
  • Make sure that SST does not interfere with the 1st and reverse brake piston.

*a

Protective Tape

(b) Using a screwdriver with its tip wrapped with protective tape, remove the snap ring from the automatic transaxle case sub-assembly.

NOTICE:

Be careful not to damage the automatic transaxle case sub-assembly.

(c) Remove the 1st and reverse brake return spring sub-assembly from the 1st and reverse brake piston.

(d) Apply compressed air (approximately 392 kPa (4.0 kgf/cm2, 57 psi)) to the ATF hole to remove the 1st and reverse brake piston from the automatic transaxle case sub-assembly.

(e) Remove the 2 O-rings from the 1st and reverse brake piston.

77. INSPECT 1ST AND REVERSE BRAKE RETURN SPRING SUB-ASSEMBLY

Click here

78. REMOVE NO. 1 THRUST BEARING RACE

(a) Remove the No. 1 thrust bearing race from the automatic transaxle case sub-assembly.

79. REMOVE DIRECT CLUTCH DRUM OIL SEAL RING

(a) Remove the 2 direct clutch drum oil seal rings from the automatic transaxle case sub-assembly.

80. REMOVE BREATHER PLUG

(a) Disengage each claw and remove the breather plug from the automatic transaxle case sub-assembly.

*a

Push out

(b) Using a screwdriver with its tip wrapped with protective tape, remove the O-ring from the breather plug.

NOTICE:

Be careful not to damage the breather plug.

81. REMOVE MANUAL VALVE LEVER SHAFT OIL SEAL

(a) Using a screwdriver with its tip wrapped with protective tape, remove the manual valve lever shaft oil seal from the automatic transaxle case sub-assembly.

NOTICE:

Be careful not to damage the automatic transaxle case sub-assembly.

*a

Protective Tape

82. REMOVE NO. 1 TRANSAXLE CASE PLUG

(a) Remove the 4 No. 1 transaxle case plugs from the automatic transaxle case sub-assembly.

(b) Remove the 4 O-rings from the 4 No. 1 transaxle case plugs.

(c) Remove the 3 No. 1 transaxle case plugs from the transaxle housing.

(d) Remove the 3 O-rings from the 3 No. 1 transaxle case plugs.

83. REMOVE NO. 2 TRANSAXLE CASE PLUG

(a) Using a T55 "TORX" socket wrench, remove the 2 No. 2 transaxle case plugs from the transaxle housing.

(b) Remove the 2 O-rings from the 2 No. 2 transaxle case plugs.

(c) Using a T55 "TORX" socket wrench, remove the 2 No. 2 transaxle case plugs from the automatic transaxle case sub-assembly.

(d) Remove the 2 O-rings from the 2 No. 2 transaxle case plugs.

    Inspection
    INSPECTION PROCEDURE 1. INSPECT TRANSMISSION OIL CLEANER MAGNET (a) Use the removed transmission oil cleaner magnets to collect any steel chips. Examine the chips and particles in the transaxle hou ...

    Reassembly
    REASSEMBLY CAUTION / NOTICE / HINT HINT: Check each bearing position and installation direction. Mark Front Thrust Bearing Race Diameter Inside / Outside (mm (in.)) Thrust Bearing Diameter In ...

    Other materials:

    Lexus RX (RX 350L, RX450h) 2016-2022 Repair Manual > Camshaft Oil Control Valve (for Bank 2): Removal
    REMOVAL CAUTION / NOTICE / HINT The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during camshaft timing gear bolt removal/installation are shown below. Necessary Procedures After Parts Removed ...

    Lexus RX (RX 350L, RX450h) 2016-2022 Repair Manual > Navigation System: Stereo Jack Adapter Light does not Illuminate
    DESCRIPTION Power is supplied to the No. 1 stereo jack adapter assembly illumination from the radio receiver assembly. WIRING DIAGRAM CAUTION / NOTICE / HINT NOTICE: Depending on the parts that are replaced during vehicle inspection or maintenance, performing initialization, registration or calibra ...

    Lexus RX (RX 350L, RX450h) 2016-{YEAR} Owners Manual

    Lexus RX (RX 350L, RX450h) 2016-{YEAR} Repair Manual

    © 2022 Copyright www.lexusrx.net
    0.0185
