COMPONENTS

ILLUSTRATION

*1

FRONT WHEEL OPENING EXTENSION PAD LH

*2

NO. 3 ENGINE UNDER COVER

*3

FRONT FENDER APRON SEAL LH

-

-

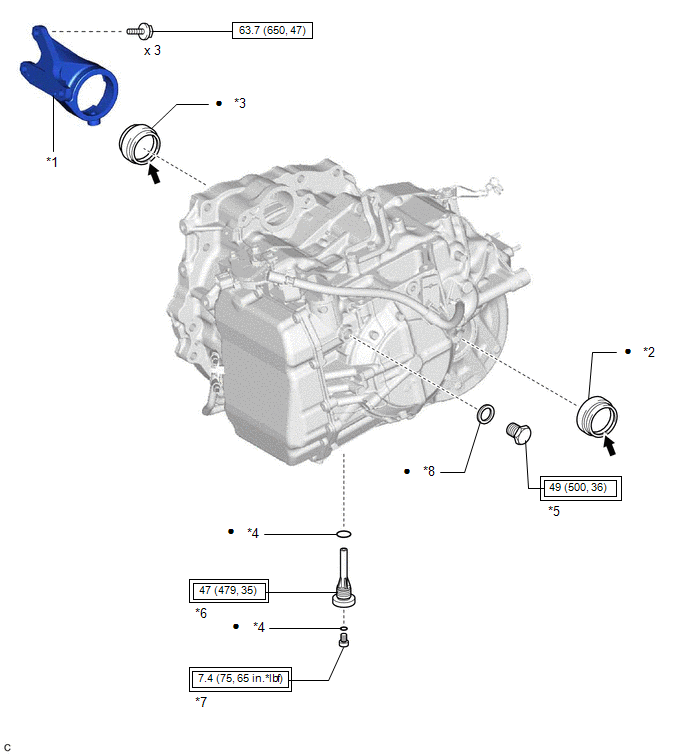

ILLUSTRATION

*1

DRIVE SHAFT BEARING BRACKET

*2

FRONT DRIVE SHAFT OIL SEAL LH

*3

FRONT DRIVE SHAFT OIL SEAL RH

*4

O-RING

*5

REFILL PLUG

*6

OVERFLOW PLUG

*7

DRAIN PLUG

*8

GASKET

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

N*m (kgf*cm, ft.*lbf): Specified torque

●

Non-reusable part

MP grease
    Differential Oil Seal
    ...

    Replacement
