Lexus RX (RX 350L, RX450h) 2016-2024 Owners Manual: Luggage compartment features

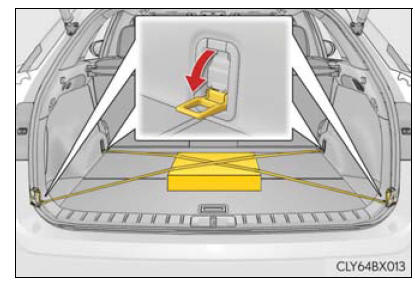

Cargo hooks

RX450h

Lexus RX. Using the storage features

Pull down the hook to use.

RX450hL

Lexus RX. Using the storage features

The cargo hooks are provided for securing loose items.

WARNING To avoid injury, always return the hooks to their stowed positions when not in use.

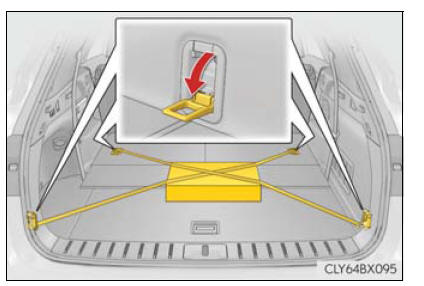

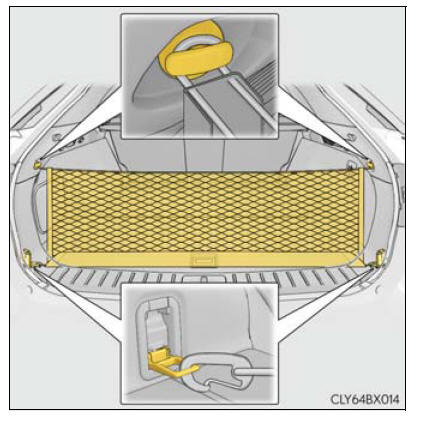

Cargo net hooks

To hang the cargo net, use the cargo net hooks and rear cargo hooks.

Lexus RX. Using the storage features

WARNING To avoid injury, always return the hooks to their stowed positions when not in use.

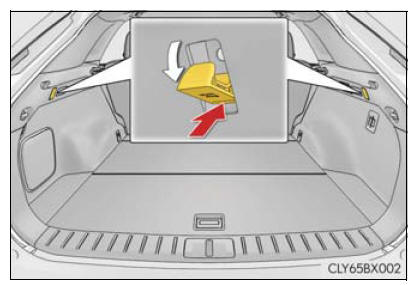

Grocery bag hooks

RX450h

Lexus RX. Using the storage features

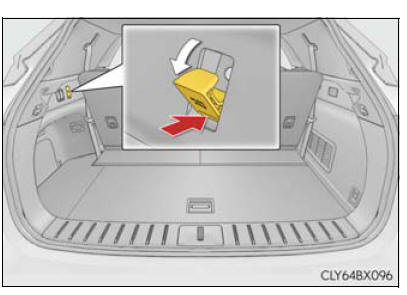

To use the grocery bag hook, push it in.

RX450hL

Lexus RX. Using the storage features

NOTICE Do not hang any object heavier than 8.8 lb. (4 kg) on the grocery bag hooks.

Luggage cover

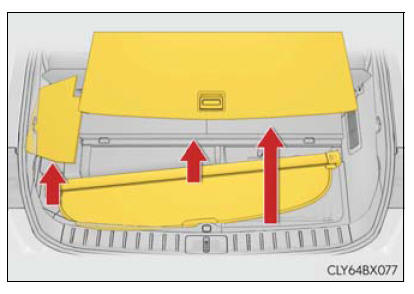

■ Removing the luggage cover unit (RX450hL) Remove the deck board and side auxiliary box cover and take out the luggage cover unit.

Lexus RX. Using the storage features

■ Using the luggage cover RX450hL: Before installing the luggage cover, fold down the third-row seats.

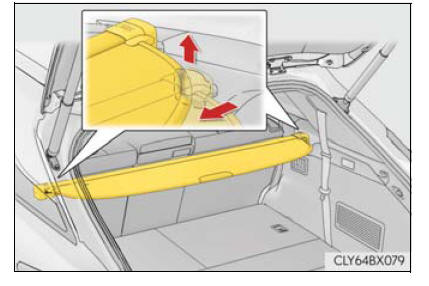

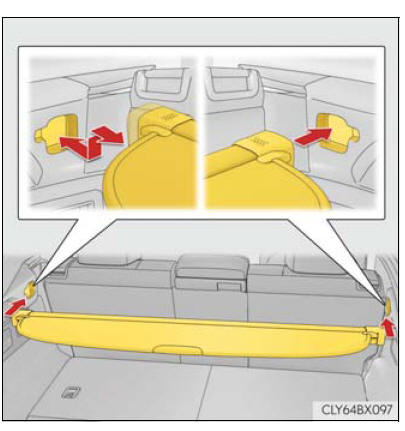

1. Insert either end of the luggage cover into the recess, then compress the other end of the luggage cover and insert it into the recess.

Lexus RX. Using the storage features

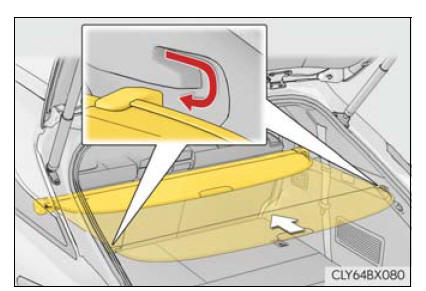

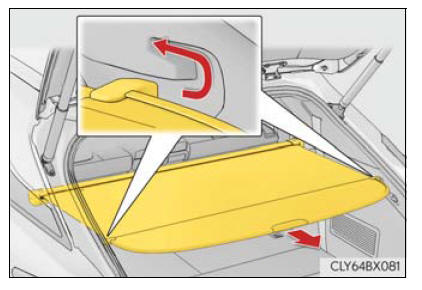

2. Pull out the luggage cover and hook it onto the anchors.

Lexus RX. Using the storage features

■ Removing the luggage cover

1. Release the cover from the left and right anchors and allow it to retract.

Lexus RX. Using the storage features

2. Compress the end of the luggage cover and lift the luggage cover up.

RX450h: After removing the luggage cover, place it somewhere other than the passenger compartment.

RX450hL: Stow the luggage cover under the deck board and side auxiliary box cover.

Lexus RX. Using the storage features

WARNING

  • Do not place anything on the luggage cover. In the event of sudden braking or turning, the item may go flying and strike an occupant. This could lead to an unexpected accident, resulting in death or serious injury.
  • Do not allow children to climb on the luggage cover. Climbing on the luggage cover could result in damage to the luggage cover, possibly causing death or serious injury to the child.

Auxiliary boxes (RX450h)

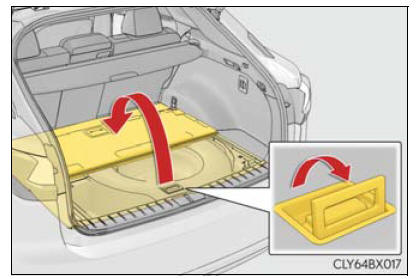

1. Pull the lever up and fold the flap of the deck board.

Lexus RX. Using the storage features

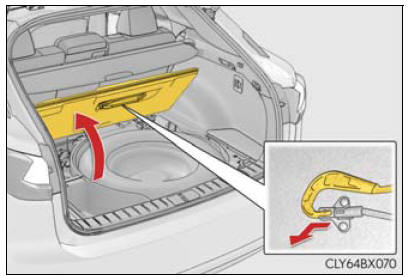

2. Lift the deck board and disengage the hook on the underside of the deck board.

Lexus RX. Using the storage features

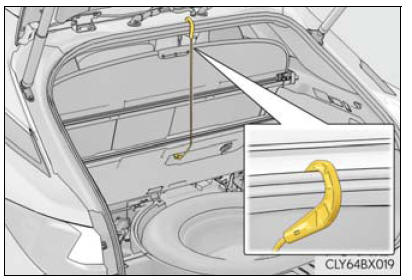

3. Attach the hook to the upper edge of the back door opening as shown.

Lexus RX. Using the storage features

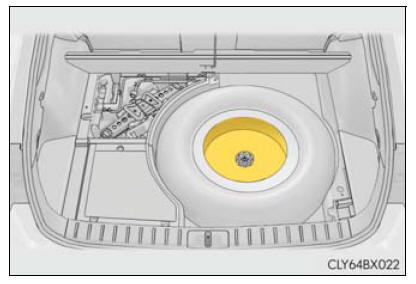

Deck floor box

Lexus RX. Using the storage features

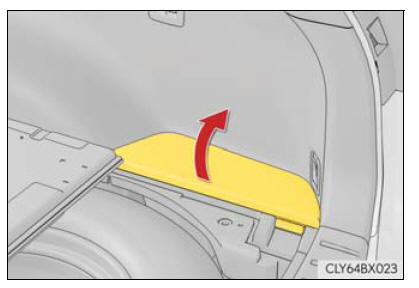

Side auxiliary box

Lexus RX. Using the storage features

WARNING If the deck board is folded or removed, return it to its original position before driving. In the event of sudden braking, an accident may occur due to an occupant being struck by the deck board or the items stored in the deck under tray.

NOTICE When closing the back door, do not leave the deck board hook hooked on the edge of the back door opening. The deck board hook may get damaged.

Auxiliary boxes (RX450hL)

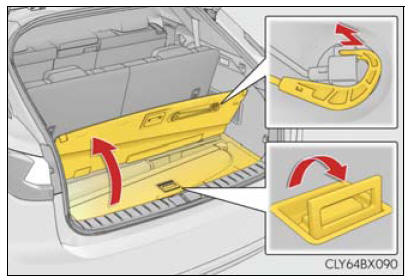

1. Pull up the lever, lift the deck board and pull out the hook from the underside of the deck board.

Lexus RX. Using the storage features

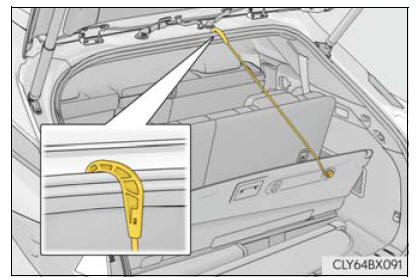

2. Attach the hook to the upper edge of the back door opening as shown.

Lexus RX. Using the storage features

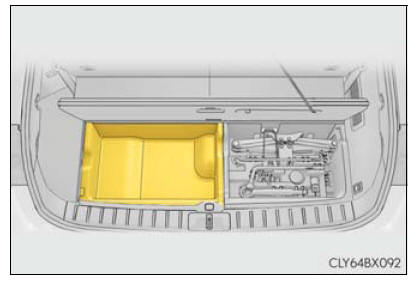

Deck floor box (if equipped)

Lexus RX. Using the storage features

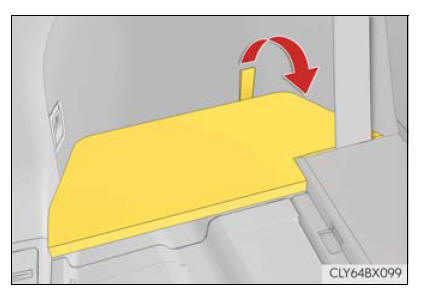

Side auxiliary box

Lexus RX. Using the storage features

WARNING

  • If the deck board is folded or removed, return it to its original position before driving.

    In the event of sudden braking, an accident may occur due to an occupant being struck by the deck board or the items stored in the deck under tray.

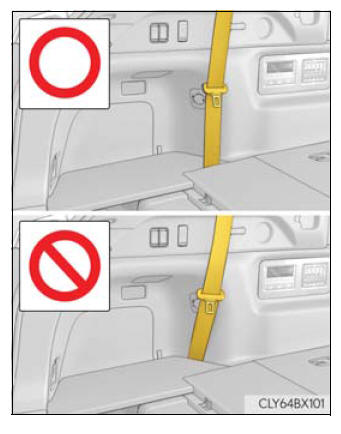

  • When installing the side auxiliary box and side auxiliary box cover, make sure that the third-row seat seatbelt is positioned correctly.

    If the seatbelt is positioned incorrectly, the seatbelt may be damaged when a passenger uses the seatbelt. Also, in the case of sudden braking, the side auxiliary box cover may come off and things stored in the side auxiliary box may fly about and strike an occupant, possibly resulting in death or serious injury.

Lexus RX. Using the storage features

NOTICE When closing the back door, do not leave the deck board hook hooked on the edge of the back door opening. The deck board hook may get damaged.

    List of storage features
    RX450h Glove box Auxiliary boxes (if equipped) Door pockets Bottle holders Console box Cup holders Coin box RX450hL Glove box Auxiliary boxes (if equipped) Door po ...
