SEAT COVER SET
(a) Align the center cutout of the pad with the V-point of the cover.
| *1 | Pad | *2 | Cover |
| *a | Center Cutout of Pad | *b | Cover V-point |
INSTALL WIRE
(a) Install the wire to the cover as shown in the illustration.
HINT:
Make sure the wire is in the center of the cover.
| *a | Correct | *b | Incorrect |
INSTALL HOG RING
(a) Using hog ring pliers, bend the hog rings into the shape shown in the illustration.
HINT:
Make sure to bend the hog rings into the proper shape. Wrinkles will form if improperly shaped hog rings are used.
(b) Install the hog rings in the order of the wires shown in the illustration.
HINT:
| *a | Vehicle Exterior |
| *b | Vehicle Interior |
| *a | Vehicle Exterior |
| *b | Vehicle Interior |
| *a | Cover Hole |
| *b | Pad Groove |
| *c | Pad Cutout |
(c) After installing the hog rings, hold the seam allowance on both ends of the cover and pull to match the pad and cover installation areas.
HINT:
If the cover is not matched to the pad, wrinkles will form.
(d) Push the cover seam allowance securely into the groove in the pad.
HINT:
Make sure to completely push the seam allowance into the groove. Wrinkles will form if any of the seam allowance is outside the groove.
| *a | Cover Seam Allowance | *b | Pad Groove |
| *c | Correct | *d | Incorrect |
INSTALL WEBBING (w/ Airbag)
(a) Pass the webbing through the pad hole, and then stretch the webbing so there are no wrinkles.
| *a | Cover Webbing |
| *b | Pad Hole |
NOTICE:
If there are wrinkles in the webbing, wrinkles will appear on the surface of the cover.
CHECK COVER POSITION
(a) Fold the cover back as shown in the illustration and check that the cover V-points and the pad mark-off lines are approximately aligned.
| *a | Cover V-point | *b | Pad Mark-off Line |
INSTALL COVER
(a) Align the cover of the seatback with the center of the seatback pad and the cover of the seat cushion with the center of the seat cushion pad. Afterward, install the covers starting from the vehicle exterior and working toward the vehicle interior.
(b) While removing wrinkles by hand as shown in the illustration, install the seatback cover by starting from the bottom and working toward the shoulders, and then install the seat cushion cover by starting from the front and working toward the rear.
HINT:
When installing the cover to the outer side, install the cover up until the installation area of the outer side headrest support.
(c) Align the cover seam line with the edges of the pad.
HINT:
| *a | Cover Seam Line | *b | Cover Seam (Stitch) |
| *c | Pad Edge | *d | Felt |
| *e | Correct | *f | Incorrect |
Align the seam allowance in a single direction.
| *a | Cover Seam Line | *b | Cover Seam (Stitch) |
| *c | Pad Edge | *d | Seam Allowance of Cover |
| *e | Correct | *f | Incorrect |

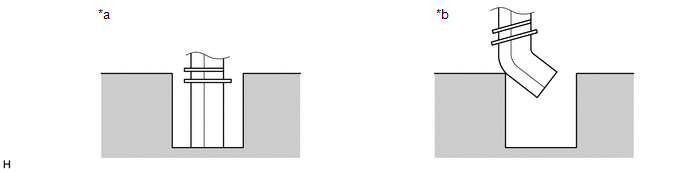

(d) Push the cover seam allowance securely into the groove in the pad.
HINT:
Make sure to completely push the seam allowance into the groove. Wrinkles will form if any of the seam allowance is outside the groove.
| *a | Correct | *b | Incorrect |
REMOVE WRINKLES
(a) After installing the cover with pad to the seat frame, use your fingers to trace the seam line of each part and remove wrinkles.
NOTICE:
If there are wrinkles in the webbing, wrinkles will appear on the surface of the cover.
| *A | w/ Airbag | - | - |
CHECKS TO PERFORM AFTER WORK IS FINISHED
(a) Smooth the cover as shown in the illustration and make sure that there are no wrinkles.
HINT:
SEAT COVER WIRE PREPARATION METHOD
(a) Cut the seat cover wire to a length which includes the amount necessary for bending the ends (approximately 20 mm (0.787 in.) on one side, approximately 40 mm (1.57 in.) for both sides).
| *a | Dimension of Seat Cover Wire after Preparation |
| *b | Length Necessary for Bending |
(b) Secure approximately 10 mm (0.393 in.) of the end of the seat cover wire in a vise.

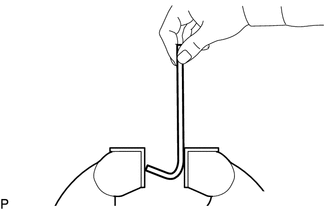

(c) Bend the seat cover wire near the vise by hand.
(d) Using a hammer, lightly tap the wire until it forms an angle of 90° or less.
(e) Remove the wire from the vise, and then secure the wire in the vise lengthwise.
(f) While securing the wire by hand to prevent the wire from rotating, tighten the vise.

Inspection
