Lexus RX (RX 350L, RX450h) 2016-2026 Repair Manual: Installation
INSTALLATION
PROCEDURE
1. INSTALL NO. 2 INSTRUMENT PANEL WIRE
(a) Connect the 2 airbag connectors of the No. 2 instrument panel wire to the instrument panel passenger airbag assembly.
| *a | Airbag Connector |
| *b | Airbag Connector Lock |
.png) | Wire Harness Clamp |
NOTICE:
- When connecting any airbag connector, take care not to damage the airbag wire harness.
- Be sure to only connect the connectors to each corresponding color.
(b) Push in the 2 airbag connector locks to install the 2 airbag connectors to the instrument panel passenger airbag assembly.
(c) Connect the No. 2 instrument panel wire to the wire harness clamp.
(d) Engage the clamp.
2. INSTALL INSTRUMENT PANEL PASSENGER AIRBAG ASSEMBLY

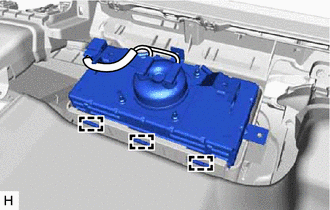

(a) Engage the 3 hooks.
| (b) Push in the instrument panel passenger airbag assembly to engage the 3 hooks. |
|
| (c) Install the instrument panel passenger airbag assembly with the 2 screws. |
|
3. INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
Click here .gif)
4. CONNECT NO. 2 INSTRUMENT PANEL WIRE
(a) Check that the engine switch is off.
(b) Check that the cable is disconnected from the negative (-) battery terminal.
CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
.png)
| (c) Connect the connector. NOTICE: When connecting any airbag connector, take care not to damage the airbag wire harness. |
|
5. INSTALL FRONT NO. 2 CONSOLE BOX INSERT
Click here
