Lexus RX (RX 350L, RX450h) 2016-2023 Repair Manual: Components
COMPONENTS

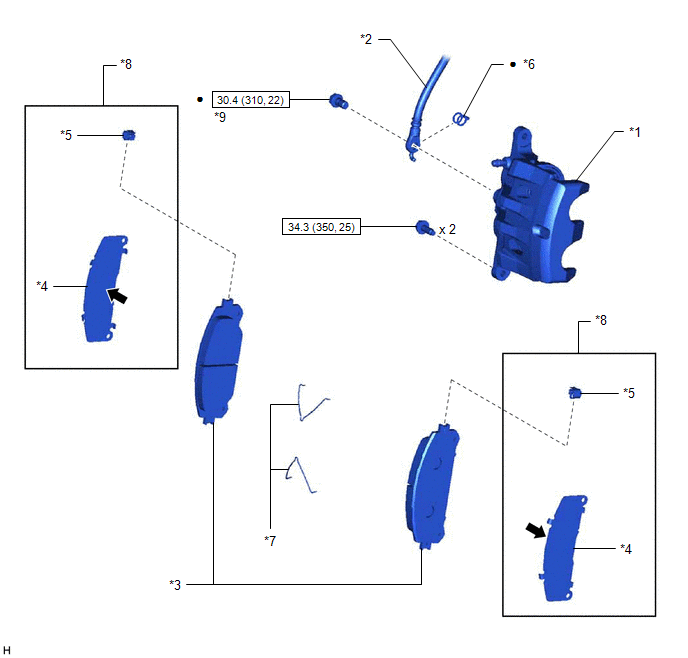

ILLUSTRATION
| *1 | FRONT DISC BRAKE CYLINDER ASSEMBLY | *2 | FRONT FLEXIBLE HOSE |
| *3 | FRONT DISC BRAKE PAD | *4 | FRONT DISC BRAKE ANTI-SQUEAL SHIM |
| *5 | FRONT DISC BRAKE PAD WEAR INDICATOR PLATE | *6 | GASKET |
| *7 | ANTI-SQUEAL SPRING | *8 | FRONT DISC BRAKE ANTI-SQUEAL SHIM KIT |
| *9 | UNION BOLT | - | - |
 | N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
 | Disc brake grease | - | - |
ILLUSTRATION
| *1 | FRONT DISC BRAKE PAD SUPPORT PLATE | *2 | FRONT DISC BRAKE CYLINDER SLIDE PIN |
| *3 | FRONT DISC BRAKE CYLINDER SLIDE BUSHING | *4 | FRONT DISC |
| *5 | FRONT DISC BRAKE CYLINDER MOUNTING | *6 | FRONT DISC BRAKE BUSHING DUST BOOT |
 | Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | ● | Non-reusable part |
| | Lithium soap base glycol grease | - | - |
ILLUSTRATION
| *1 | FRONT DISC BRAKE CYLINDER | *2 | CYLINDER BOOT |
| *3 | FRONT DISC BRAKE PISTON | *4 | PISTON SEAL |
| *5 | FRONT DISC BRAKE BLEEDER PLUG CAP | *6 | FRONT DISC BRAKE BLEEDER PLUG |
| | N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
| | Lithium soap base glycol grease | - | - |
Front Brake
...
Removal
REMOVAL CAUTION / NOTICE / HINT HINT:
Use the same procedure for the RH side and LH side.
The following procedure is for the LH side.
PROCEDURE 1. REMOVE FRONT WHEEL Click here 2. DRAIN BRAK ...
