Lexus RX (RX 350L, RX450h) 2016-2022 Repair Manual: Components
COMPONENTS

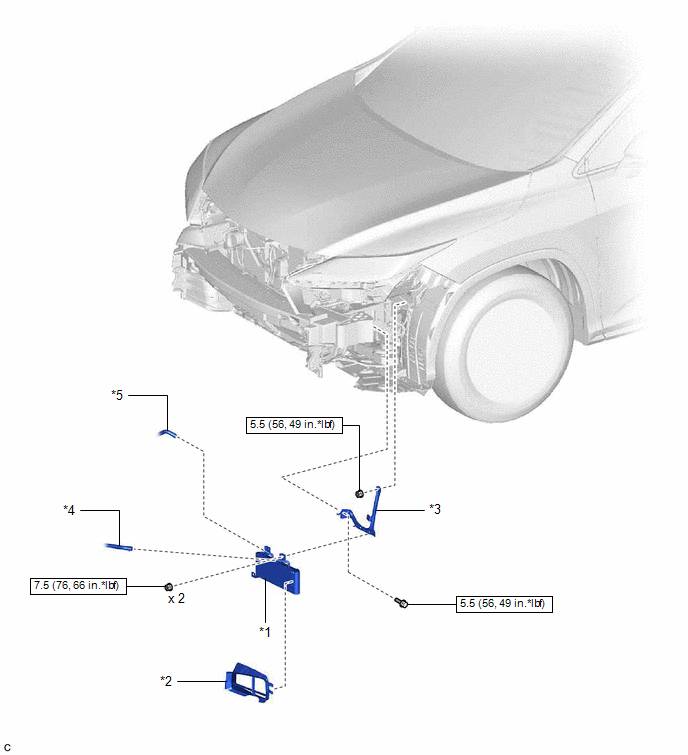

ILLUSTRATION
| *1 | OIL COOLER ASSEMBLY | *2 | TRANSMISSION OIL COOLER AIR DUCT |
| *3 | OIL COOLER BRACKET | *4 | OUTLET NO. 1 OIL COOLER HOSE |
| *5 | TRANSMISSION OIL COOLER HOSE | - | - |
.png) | N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
Removal
REMOVAL CAUTION / NOTICE / HINT The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during oil ...
